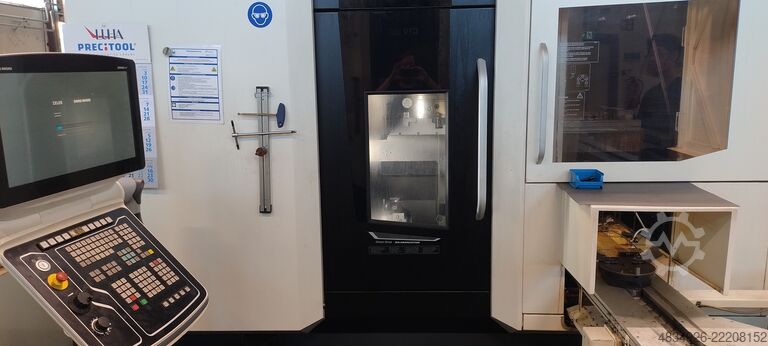

Vertical turning lathe DMG MORI CTV 250

DMG MORI · CTV 250

Caractéristiques techniques

Description

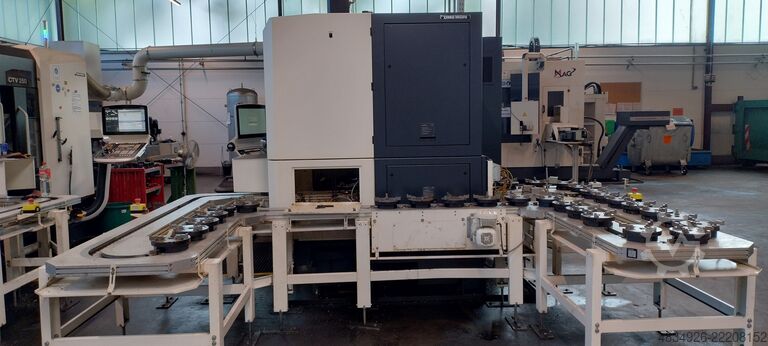

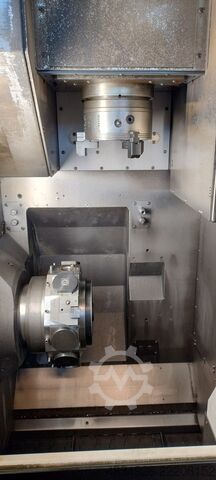

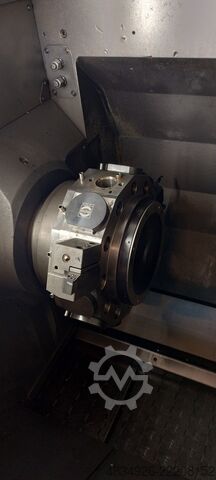

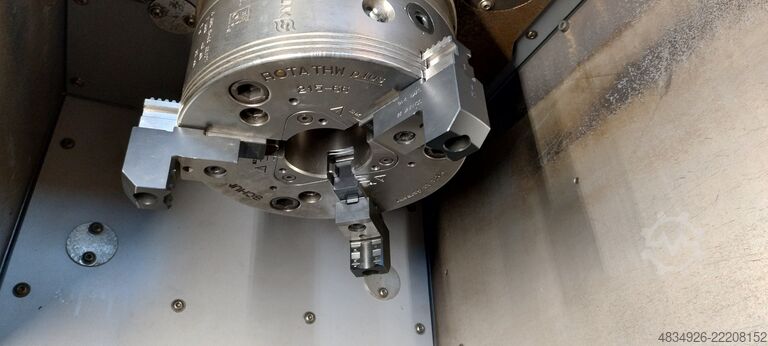

Condition: used, Year of construction: 2016, operating hours: 18,071 h, functionality: fully functional, machine/vehicle number: 06960000941, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, rapid traverse Y-axis: 30 m/min, torque: 280 Nm, input voltage: 400 V, overall weight: 6,000 kg, power: 25 kW (33.99 HP), input frequency: 50 Hz, controller manufacturer: Siemens, controller model: Sinumerik 849D sl, input current: 63 A, tool type: VDI 40, number of axes: 3, DMG MORI CTV 250, 2nd Generation – Vertical Turning Center (Pick-up), Year of Manufacture 2016 For sale is a well-maintained DMG MORI (Gildemeister) CTV 250, 2nd Generation, manufactured in 2016, with only 18,071 spindle hours. The machine is fully equipped for automated series production of chucked parts and is currently still powered on – inspection and demonstration possible by arrangement. Control System & Drive Siemens Sinumerik 840D sl (Slimline) including ShopTurn option AC main drive 25 / 32 kW, torque 280 / 360 Nm Spindle speed up to 5,000 rpm, duty cycle 100 % / 40 % Hollow cylinder, programmable clamping pressure via NC program Axes & Tools 12-station turret (disc diameter 340 mm), all stations powered (UDI 40) C-axis with powered tool system Y-axis +90 / -65 mm Linear guides, ball screws, glass scales, AC servomotors with absolute encoder Rapid traverse 30 m/min Automation & Metrology Workpiece transport system SRA 160 (drag chain, NC-controlled) including drag chain set Storage capacity: 30 parts (Ø 30–70 mm, max. 7 kg) or 18 parts (Ø 30–100 mm, max. 15 kg), max. total weight 320 kg including pallets Workpiece diameter 30–160 mm, workpiece height max. 160 mm Robot interface Profinet (electrical interface for 6-axis robot) Workpiece probe Renishaw LP2DD at the loading/unloading station, measuring accuracy 10 µm, with air blow cleaning Coolant & Peripherals Coolant system 8 / 20 bar, tank 600 l, high-pressure pump 20 bar / 40 l/min Cheb T Tbezi R R Nsd Hsb Coolant supply via turret disc to all stations Band filter system 40 µm with forced indexing, coolant level monitoring Hinged belt chip conveyor with extended discharge chute (+300 mm), enlarged chip container, modified sludge pump Aluminum machining package Integrated work area extraction max. 400 m³/h, work area flushing with 3 flushing nozzles Cabinet cooling up to 40 °C, hydraulic oil cooler Air blower via main spindle, 4-color signal light Remote diagnostics via the internet Connection values: 400 V / 50 Hz, 40 kVA, 63 A · Weight: approx. 6,000 kg Sale from current location, dismantling/loading/transport by arrangement or by the buyer. Sale is subject to the exclusion of all warranties (commercial sale of used machines, sold as seen). Please contact us if you have any questions or would like to arrange a viewing.
