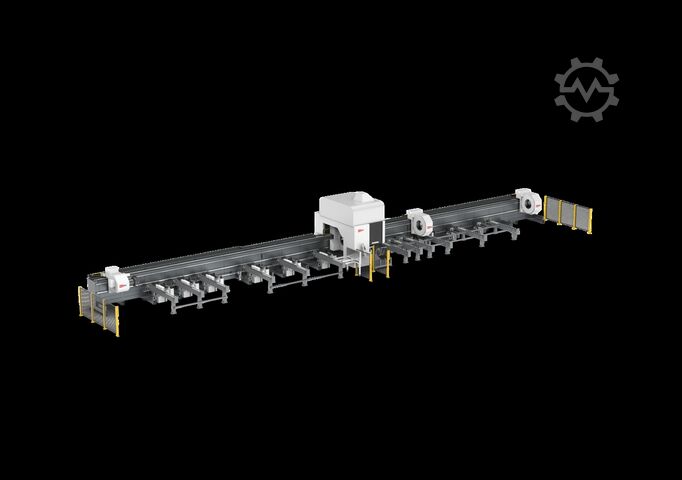

Tube and profile laser cutting machine ACME 6055-TNKA

ACME · 6055-TNKA

Caractéristiques techniques

Description

Condition: new, functionality: fully functional, Year of construction: 2026, laser type: fiber laser, laser source model: Max Photonics, laser power: 12,000 W, sheet thickness (max.): 30 mm, sheet thickness steel (max.): 30 mm, sheet thickness stainless steel (max.): 25 mm, sheet thickness aluminum (max.): 25 mm, sheet thickness brass (max.): 5 mm, sheet thickness copper (max.): 5 mm, pipe diameter (max.): 550 mm, pipe length (max.): 12,000 mm, warranty duration: 12 months, Equipment: CE marking, centralized greasing system, cooling unit, dust extraction, emergency stop, fume extraction, safety light barrier, Maximum performance for modern tube and profile processing The ACME tube and profile laser system was developed for the highest demands in industrial manufacturing and combines precision, productivity, and flexibility at the highest level. Thanks to its powerful design and intelligent automation, it is ideally suited for steel construction, mechanical engineering, plant engineering, metal processing, and demanding job-shop operations. The innovative machine concept with four high-precision chucks, three movable clamping systems, and vertically arranged guides ensures exceptionally stable workpiece guidance. This allows even long, heavy, or complex tube and profile geometries to be processed with the highest accuracy. The system is available in various versions for tube diameters of Ø 280 mm, Ø 360 mm, Ø 550 mm, Ø 640 mm, and Ø 800 mm and can be optimally adapted to individual production requirements. With available laser powers from 3 kW to 20 kW and processing lengths of up to 12 meters, the ACME tube laser system offers maximum performance reserves for a wide range of applications – from thin-walled profiles to heavy structural tubes. Your advantages at a glance ✔ Four high-precision chucks for maximum processing accuracy ✔ Three movable clamping systems for optimal workpiece guidance ✔ Vertical guide structure for maximum stability and dynamics ✔ Tube diameters up to Ø 800 mm available ✔ Processing lengths up to 12,000 mm ✔ Laser powers of 3 kW, 6 kW, 12 kW and up to 20 kW ✔ Innovative 45° laser head for weld preparation and complex contours ✔ Semi-automatic loading and unloading for efficient production processes ✔ Integrated small parts conveyor for automatic parts removal ✔ High process reliability thanks to high-quality brand-name components ✔ Full CE compliance according to European safety standards ✔ German-speaking service and professional online support Technical highlights Powerful tube processing Tube diameter: Ø 280 mm to Ø 800 mm Processing length: up to 12,000 mm Four-chuck technology Remainder optimization through intelligent clamping technology High dynamics with maximum positioning accuracy Advanced cutting technology Laser powers from 3 kW to 20 kW Precise contour and miter cuts 45° laser head for weld preparation Optimal cut quality for a wide range of materials Automation for maximum productivity Semi-automatic loading and unloading system Automatic small parts disposal via conveyor Reduced downtime Higher output with less personnel Typical application areas Steel and hall construction Mechanical and plant engineering Metal and tube processing Vehicle and commercial vehicle construction Agricultural technology Facade and railing construction Furniture and profile manufacturing Job-shop operations Quality and safety The ACME tube and profile laser system meets all relevant European safety requirements and is delivered CE-compliant. High-quality components from leading manufacturers ensure a long service life, high availability, and maximum investment security. Chelozb Irpsqdnxbob ACME tube and profile laser system More performance. More precision. More possibilities. The intelligent solution for economical and highly productive tube and profile processing in modern manufacturing.
