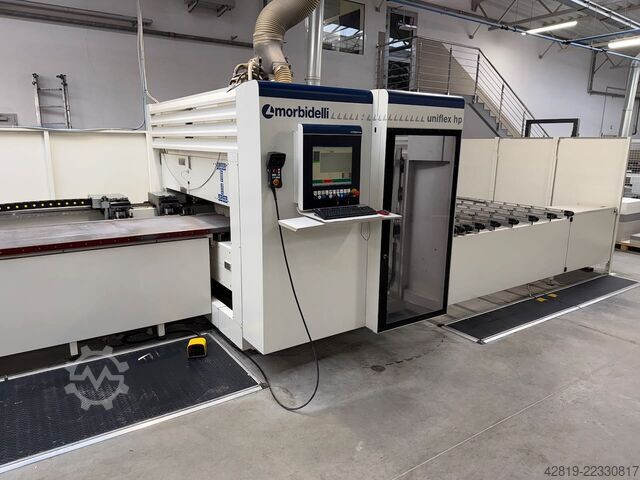

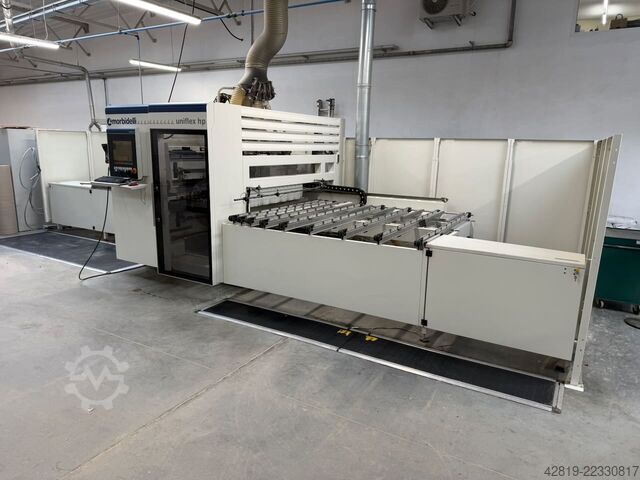

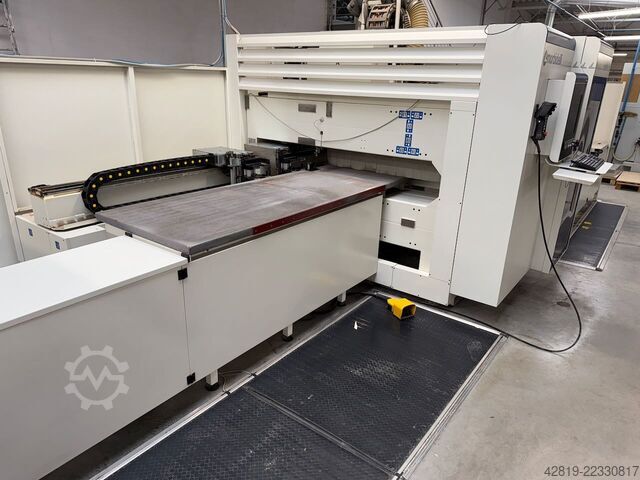

Throughfeed machining center Morbidelli UNIFLEX HP

Morbidelli · UNIFLEX HP

Caractéristiques techniques

Description

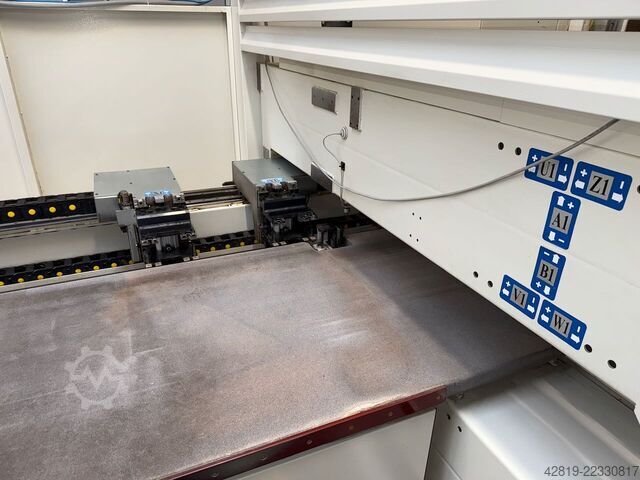

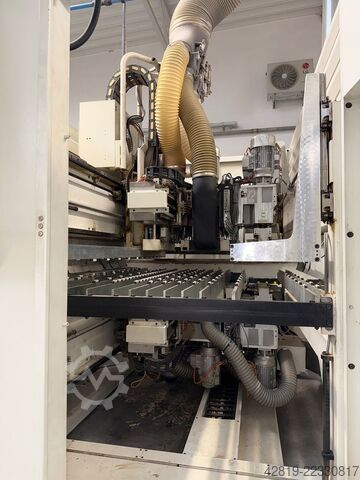

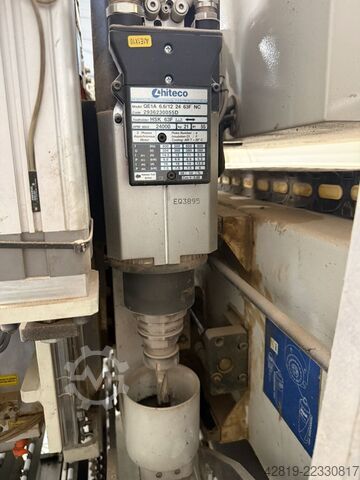

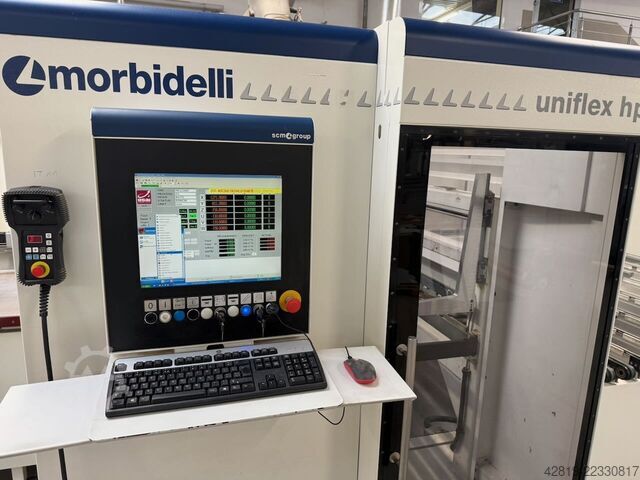

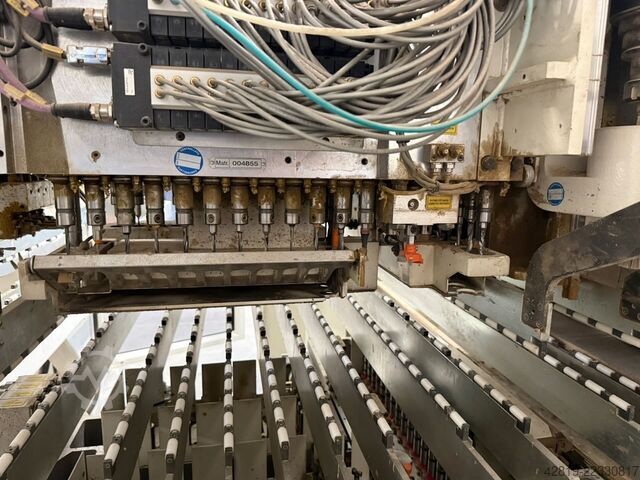

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, input voltage: 400 V, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,300 mm, workpiece height (max.): 80 mm, We offer this very good Morbidelli Uniflex HP Throughfeed Borer and Router CNC, year of construction 2016. Manufacturer: Morbidelli Model: Uniflex HP Year of manufacture: 2016 Condition: very good Category ID: 2074 Cheujyr Uguopd S T Ueb Type ID: 151 Machine type: Throughfeed Borer and Router CNC The Morbidelli UNIFLEX HP is a high-performance CNC drilling and routing centre designed for precision panel processing in furniture and cabinet manufacturing. It allows drilling on multiple faces of a panel and routing operations with high accuracy while minimizing setup time through automated clamping and CNC control. Key Features • 6-side panel drilling capability with upper and lower machining heads • Up to 134 independent spindles for high production throughput • RO.AX rotoaxial spindle technology ensuring zero backlash and extremely accurate drilling • Dual independent clamps eliminate machine setup time and allow simultaneous operations • Ability to process two overlapped panels simultaneously • Integrated saw blade in X-axis for panel cutting operations • Heavy-duty welded O-frame structure for maximum rigidity and precision • CNC controlled panel movement with brushless motors and ball screws • Xylog Plus 2 CNC software with PC interface Drilling System • 96 vertical drilling spindles (48 upper + 48 lower) • Horizontal drilling spindles: o 8 + 8 in X direction o 4 + 2 in Y direction • Maximum spindle speed: 6,000 rpm • Integrated X-axis saw blade: o Diameter: 125 mm o Speed: 7,500 rpm CNC Control & Software • Industrial PC with Windows operating system • 17" colour display and keyboard interface • Xylog Plus 2 programming software • Programming options: Parametric programming • DXF and ASCII file import support • Simulation and optimisation of drilling cycles Panel Capacity • Panel length: 250 – 3000 mm • Panel width: 70 – 1300 mm • Panel thickness: 10 – 80 mm • Maximum panel weight: 100 kg Axis Speeds • X axis: 120 m/min • Y axis: 35 m/min • Z axis: 30 m/min Machine Requirements • Compressed air: 6.5 bar • Average air consumption: 500 Nl/min • Dust extraction airflow: o Upper head: 5000 m³/h o Lower head: 2250 m³/h Additional Equipment Included • Panel length measuring device • Electrical cabinet with air conditioning • Manual loading and unloading stations with cross belts If you have any questions or need more information, feel free to send us a message or give us a call.
