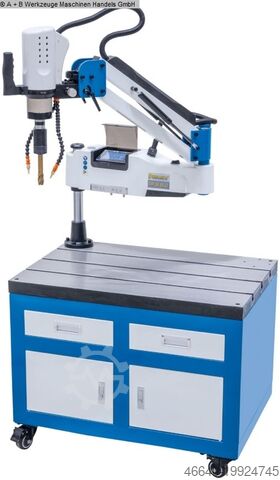

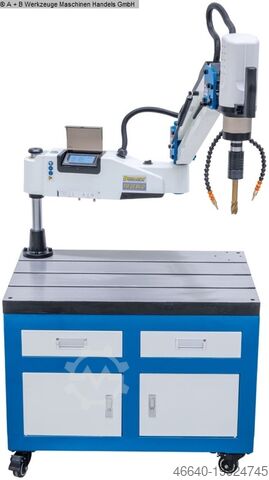

Thread-Cutting Machine BERNARDO TM 36 BLO / R 1200

Bernardo · TM 36 BLO / R 1200

Caractéristiques techniques

Description

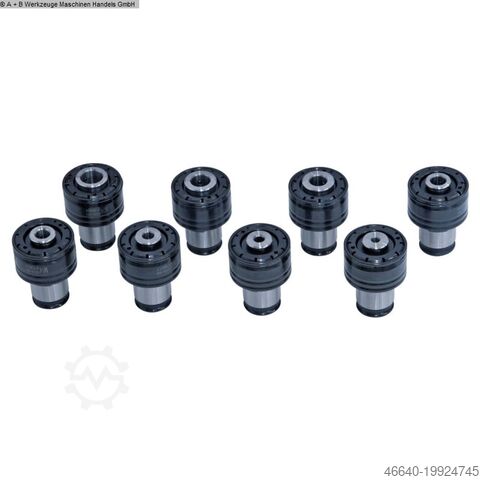

Condition: new, Bernardo TM 36 BLO/ R 1200 Electric threading machine Technical specifications Threaded holes* M5 - M36 Tool holder GT 24 Speed max. 30 - 150 rpm Adjustable angle 0° - 90 Max. Working radius R 1200 mm Quick-change chuck DIN 376: M5-6 / M8 / M10 / M12 / M14 M16 / M18 / M20 / M22-24 / M27 / M30 / M33 / M36 Motor power 1200 W Voltage 230 V Weight approx. 35 kg * Material strength 400 N / mm2 Scope of delivery Operation via touchscreen Digital drilling depth display Micro spray system Blow-out device Quick-change holder Quick-change chuck according to DIN Electric motor Cs Aqkjpag R Rsidtehb 90° angle adjustment Mounting flange features With micro-spray system as standard for constant cooling and minimum cooling lubricant consumption Includes blow-out device for removing chips, providing an optimum view of the drill hole Includes quick-change chuck for using taps for through holes and blind holes Swivel motor unit for tapping at any desired angle between 0° and 90 Higher accuracy compared to manual tapping, thread is guaranteed to be at right angles (90°) High productivity, significant time savings compared to manual tapping Quick-change chuck with integrated slip clutch prevents the tap from breaking Includes swivel arm with large radius for easy positioning of the tap on the workpiece For tapping in steel, stainless steel, aluminum and non-ferrous metals Price: Base frame 900 x 600 mm with 2 drawers for TM series 830.00 € plus 19% VAT
