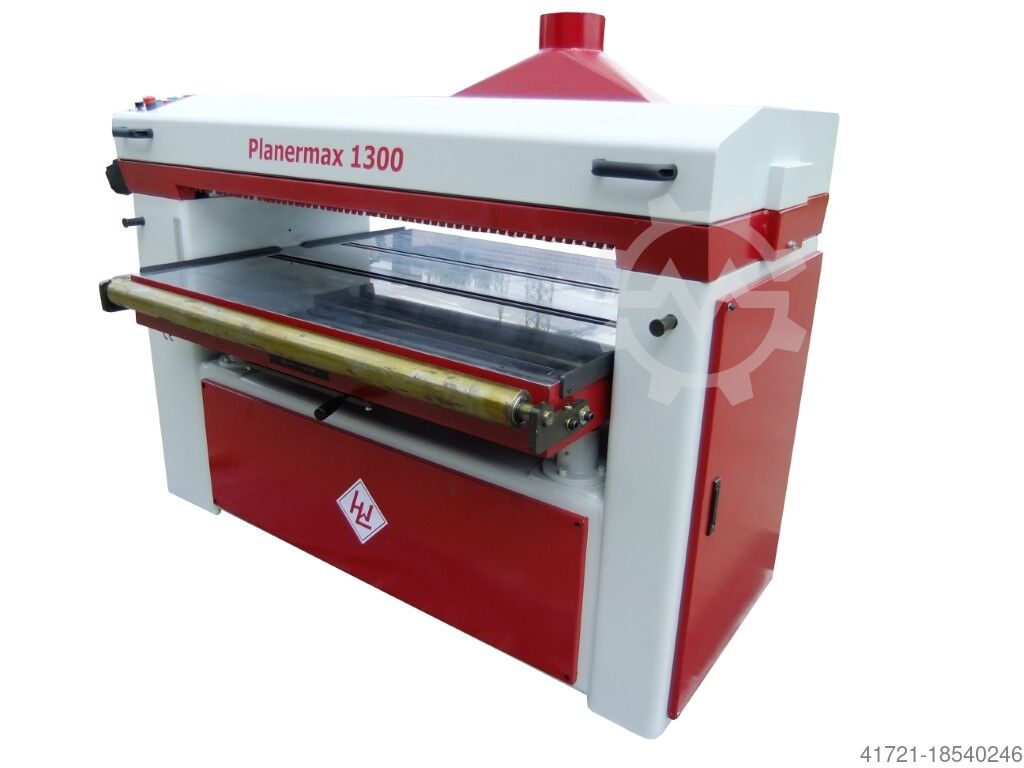

Thicknessing machine WINTER PLANERMAX 1300

WINTER · PLANERMAX 1300

Caractéristiques techniques

Description

Condition: new, Year of construction: 2025, functionality: fully functional, input voltage: 230 V, planing width: 330 mm, rotational speed (max.): 9,000 rpm, total width: 615 mm, total height: 555 mm, total length: 850 mm, chip removal: 3 mm, height adjustment type: mechanical, number of feed rollers: 1, number of planer blades: 36, planing height: 156 mm, PS33 with spiral shaft • Innovative design and powerful motor. • Chip removal of up to 3.2m. • IN & OUT TABLE. • Double knife cylinder with double-sided knives. • Indicator shows the material removal on the front of the machine. • Planer shaft with reversible knife • No extraction system required thanks to integrated fan to remove sawdust from the planer cylinder • Depth stop with seven positions for repeated thickness planing at the same height • Maximum part width up to 330 mm • Type: PS33 • Recommended use: Craftsmen • Input power (230 V): 1.8 kW • Planer shaft speed: 9,000 rpm. • Planer shaft diameter: 46 mm • Number of reversible plates in planer shaft: 36 pieces • Reversible plate size: 15 x 15 x 2.5 mm, R=150 • Feed speed: 7.9 m/min. • Max. material removal: 3.2 mm • Max. planing width: 330 mm • Max. planing thickness: 156 mm • Min. workpiece length: 120 mm • Extraction: integrated fan, 62 mm suction nozzle or fabric bag • Noise level: 96 dB • Machine dimensions (length x width x height): 340 x 615 x 555 mm • Machine dimensions with tables unfolded (length x width x height): 850 x 615 x 555 mm • Machine weight: 35 kg • Packaging dimensions (length x width x height): 415 x 660 x 545 mm • Package weight: 39 kg Ceupd S Tovncu Ij Uohb Included in the package: • 36 carbide inserts (in the planer shaft) • 5 replacement carbide inserts and screws • Waste bag for sawdust and Dust • Connection set for waste bags • Torx key for changing the inserts (TX25)
