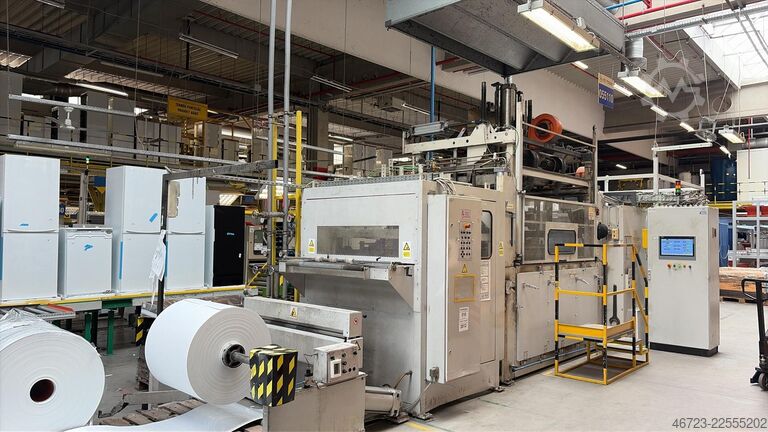

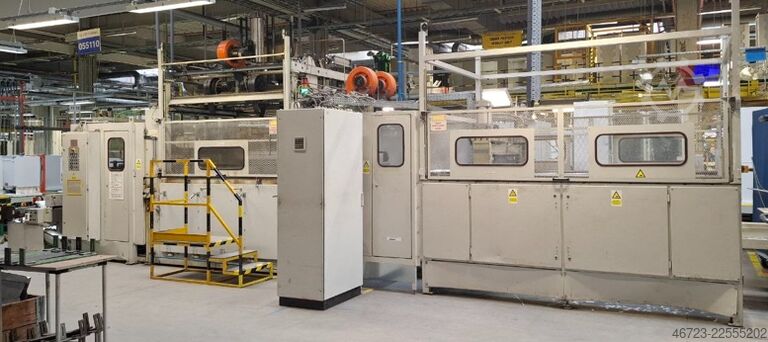

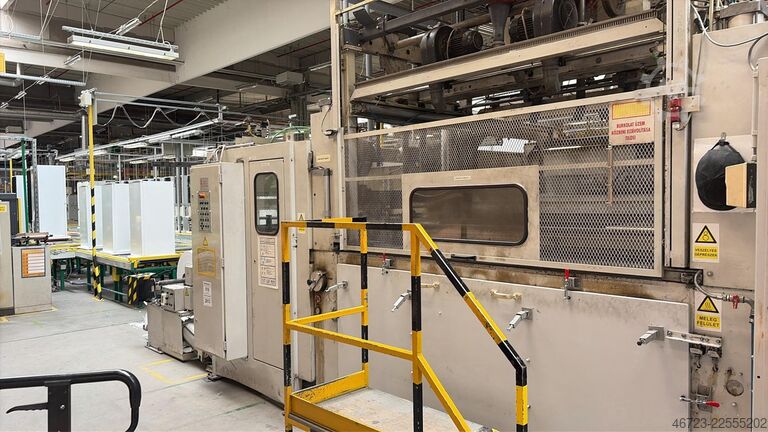

Thermoforming machine COMI HEDL 2000x800x200

COMI · HEDL 2000x800x200

Caractéristiques techniques

Description

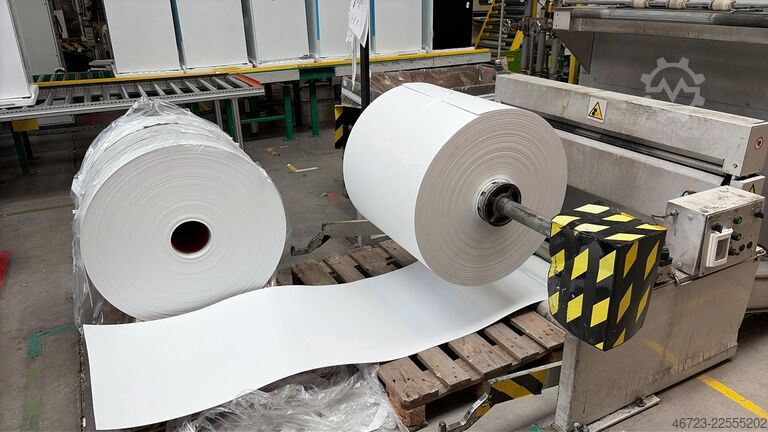

Condition: used, Year of construction: 2014, COMI 1092 Door liner thermoforming machine, Thermoformer HEDL 2000x800x200, Year of Manufacture 2014, Serial Number C1092 Machine Specifications (List View) Forming & Mould Dimensions Maximum inside frame dimensions: 2004 × 804 mm Maximum moulded part height: 150 mm (male mould) / 50 mm (female mould) Maximum mould base dimensions: 2000 × 800 mm Cheuplszumwcja Nmjb Minimum mould base dimensions: 600 × 500 mm Coil width range (min/max): 580 to 900 mm Mechanical Characteristics Lower die holder force: 40,000 kg Machine weight: 20,000 kg (20 tonnes) Machine dimensions: See Drawing LO-029-14-01 Heating System Upper heating power: 168 kW Thermoregulator power: 24.99 kW (3 × 8.33 kW) Motors & Drives Forming motor power: 12 kW Vacuum pump motor power: 7.8 kW De-reel device motor power: 0.37 kW Sheet conveyor motor power: 8.17 kW Transport regulation motor power: 1.1 kW Fan motor power: 3.0 kW (4 × 0.75 kW) Transfer unloading motor power: 3.0 kW (2 × 1.5 kW) Scrap cutting motor power: 2.2 kW Moulded-part unloading belts motor power: 0.5 kW Cooling & Auxiliary Equipment Chiller power: 28.75 kW Auxiliary equipment maximum power: 4.12 kW Electrical Requirements Maximum installed power: 264 kW Typical operating power (50% load): 132 kW Pneumatic Requirements Pneumatic operating pressure: 6 bar Air consumption: 2,000 N litres/cycle Water Requirements Water temperature: 25 °C Water pressure: 2 to 3 bar . Fully automatic thermoforming machine designed to shape plastic sheets up to 2000 × 800 mm with a maximum forming depth of 150 mm (200 mm), suitable for high-capacity industrial applications. Thermoformer details: Forming area 2000 × 800 mm Max forming depth 150 (200) mm Heating station – ONLY Upper heater, heater length fully configurable, fulfils pre-heating and heating functions. Pressure and vacuum forming operation. Trimming press. Scrap collection end station. Industrial-grade construction with multiple access doors, observation windows, and integrated ventilation heat management.
