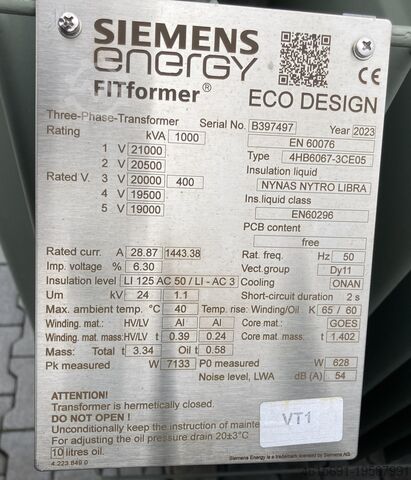

Switchgear & components Siemens 1000 kVA 20/0,4 kV Dy11

Siemens · 1000 kVA 20/0,4 kV Dy11

Caractéristiques techniques

Description

Condition: good (used), Year of construction: 2010, Horlemann HR10U-S Switchgear 12 kV HR 10U: the universal switchgear for industry and utilities Modular medium-voltage switchgear for solar power distribution Switchgear: Manufacturer: Horlemann Circuit: KKÜHTTT Type: HR10U-S Rated voltage: 12 kV Rated current: 630 A Short-circuit capacity: 20 kA/1s Height: 2060 mm Width: 1300 mm Depth: 800 mm Cell width: 7 x 650 mm Busbar: AL 50 x 10 mm Weight: approx. 620 kg Rated data HR10U: Ur: 12 kV Ir: 630 A Up: 75 kV Ik: 20 kA (1s) Ud: 28 kV IP: 50 kA Fr: 50 Hz IAC: AFL 25 kA (1 s) IP: IP4X According to IEC-62271-200 (VDE 0671-200); 2003-11 TMC Cast Resin Transformer: Design: Cast Resin High Voltage: 10 kV Low Voltage: 400-230 V Circuit: Dyn5 Creh S Ienfu Dysm Uxeg Year of Construction: 2010 Height: 1740 mm Width: 1300 mm Depth: 900 mm Weight: 1.8 t The switchgear is pressure-relieved via a pressure-relief chamber in the lower part of the switchgear panel. Documents: Test Report Circuit Diagram Financing through our bank is also possible. komplett-konzept.leasingo.de You can find more items - new and used - in our shop! International shipping costs on request!
