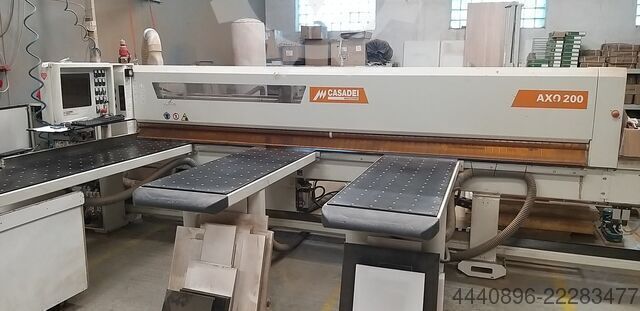

Sliding table saw SCM Casadei AXO 200

SCM / Casadei · AXO 200

Caractéristiques techniques

Description

Condition: used, Year of construction: 2012, Used machine Year of manufacture: 2012 Base machine - Dynestic 7521 20.6 Dynestic table For classic nesting machining with wear plate Co Nsw I U Ecogz Sfkohb Machining length 6250 mm (DYNESTIC 20.6 additional 4th stop in Y already included) Machine frame in welded construction with ground and hardened prism guides for the traversing carriage, spindle head and consoles Traversing carriage in gantry design Rack and pinion drive, helical, in X and Y direction, ball screw spindles Z-axis for precise positioning Technical data: The technical data refer to the DYNESTIC 7521 - 20.6 Please refer to the corresponding data sheets. Machining dimensions: Max. workpiece size for edge machining X = 6250 mm Y = 2100 mm Max. travel distances X = 7360 mm Y = 2720 mm Z = 325 mm Max. clearance height DYNESTIC table Z = 1st stage 318 mm / 2nd stage 418 mm from top edge of table (without tool, without chuck) Maximum programmable speed Vector speed: 128.0 m/min X = 80 m/min, Y = 100 m/min, Z = 25 m/min 4-stage extraction hood with pneumatic height adjustment and viewing window Voltage 400 V, 50/60 Hz CONTROL: Dual-Core processor Operating system Windows XP 80 GB hard drive / 1 GB RAM RJ45 network connection 10/100 Base-T Fast Ethernet US keyboard and Microsoft IntelliEye mouse (optical) CD-ROM / CD-RW drive (CD burner) Remote maintenance Integrated network card for data transfer of control and program data. Data transfer takes place via high-speed internet connection Requirement: High-speed internet connection at the machine. DYNESTIC table Solid, continuous machining table with grid division, continuous grooves in X and Y direction, groove spacing 50 mm with 25 meters of sealing cord for securing the wear plate 1 machining field with stop rails / stop Height 30 mm, pneumatically lowerable 2 stop rails in Y direction and 1 stop in X direction on the right (when viewed from the front of the machine) Vacuum fields 1-circuit vacuum system Boring unit 7976, 24 spindles Drive power 3.0 kW 18 vertical spindles individually selectable Arrangement in L-shape, 10 in X and 8 in Y direction 32 mm grid Max. drill diameter: 35 mm Total drill length: 70 mm from the mounting end (depending on plate thickness) Spindle extension stroke: 70 mm Rotation direction: alternating right-hand / left-hand rotation n(max.) 1000 - 5710 min-1, steplessly adjustable Chuck: M 10 thread - clearance fit 11 mm without tool, without chuck 6 horizontal spindles 2 double boring spindles in X direction (32 mm distance between 1st and 2nd horizontal boring spindle) 1 double boring spindle in Y direction Chuck: M 10 thread, clearance fit 11 mm Total drill length max. 70 mm from the mounting end without tool, without chuck Free space 1 for: Optional double boring spindle in X direction or Vertical adapter with double feed force Free space 2 for: Optional saw in X direction or Vertical adapter with double feed force Milling unit 7831, 2-stage Power: 11.0 kW (S6) n(max.) = 1000 - 24000 min-1, steplessly adjustable, two-stage feed stroke max. power at 12000 min-1 to 24000 min-1 air-cooled with HSK-F 63 tool holder with right-hand
