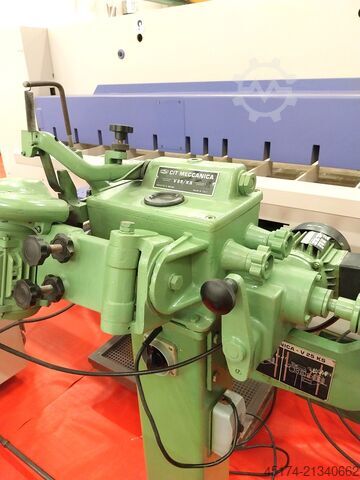

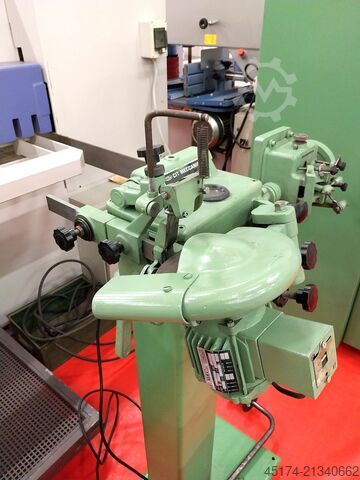

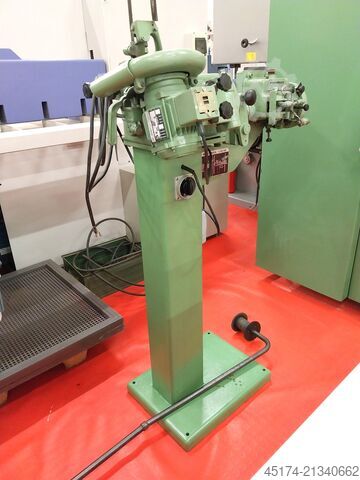

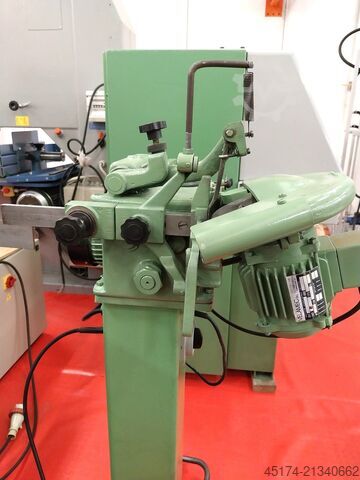

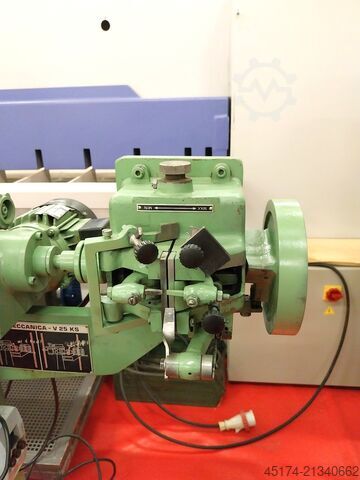

Sharpening machine CIT MECCANICA V 25 / KS

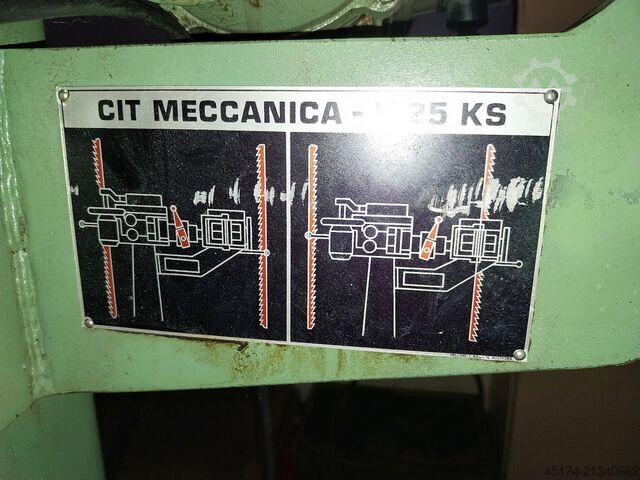

CIT MECCANICA · V 25 / KS

Caractéristiques techniques

Description

Condition: used, Year of construction: 2016, Angular panel saw with automatic pre-loading and twin pusher system for optimised cutting Osi Plus Numerical Control Os Labelling labelling machine with on-board graphic labelling with part drawings Label printing management software Optiplanning Cutting Optimizer Cutting length mm 4500 Cutting width mm 2200 Blade projection 95 mm Motorized rollers for lateral loading on lifting table 4500 x 2200 mm. The translation speed is 10.8 m\min (50hz) - 13.1 m\min (60hz) Automatic recognition of the lost panel (martyr panel) based on the thickness specified in the machine data Low battery stop Automatic side loading buffer. Includes: perimeter nets, double photocell, push-button panel, predisposition electric for the two motorized pre-rollers and the amplification of 4 rollers in place of the fork passages in the pre- intermediate roller conveyor Pre-loading side roller conveyor dim 3800 x 2200 mm with motorized rollers (height from the ground 325 mm) Inertial conveyor for conveying longitudinal trimmings for angular systems 4500 mm (total length 7295 mm) 3000 mm extension to the inertial conveyor to also convey transverse trimmings Long chute for manual conveying of cross-cut trimmings to the centralized inertial conveyor 2050 x 850 mm air curtain discharge table with wheels at the front Air generator up to 6 floors with air curtain MULTIPUSHER 2.4 system with automatic lubrication Additional mobile lateral aligner on the transverse plane. The presence of this device allows to reduce from Chj Nryzsuc Idxjihob 1830 to 1220 mm is the minimum length of the panels that must be sent for cross-sectioning. Automatic blade shaft bending detection device for angular systems (longitudinal and transversal) consisting of a sensor that detects the deflection directly on the blade shaft and a device that detects the revolutions blade directly on the spindle. Remote cycle start button panel Automatic panel loading via rear lifting table Automatic double aligner with pneumatic cylinders Additional movable lateral aligner on the transverse plane Main blade, max diameter mm, KW 15 Scoring blade, max diameter mm, KW 2.2 Blade carriage speed 1-140 m/min. – BRUSHLESS motors Longitudinal pusher carriage speed 90 m/min. Cross pusher carriage speed 135 m/min. Double pusher carriage with 6 grippers on the longitudinal carriage + 10 grippers on the transverse carriage (8 fixed grippers + 2 on the multi-push system) Cutting system for thin panels
