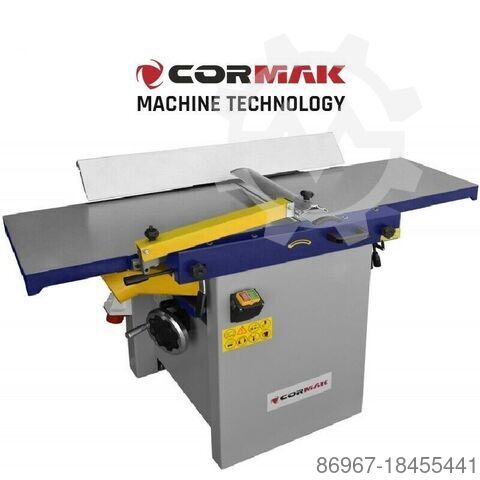

Planer and Thicknesser CORMAK PT310

CORMAK · PT310

Caractéristiques techniques

Description

Condition: new, Year of construction: 2026, Thickness and Surface Planer CORMAK PT310ECO with Cutter Block – Precision Machining and Work Efficiency The CORMAK PT310ECO is a modern planer‑thicknesser engineered for high-quality finish, reliability, and low noise levels. Thanks to its cutter block, it is an advanced woodworking machine combining jointing and thickness functionality in a single robust structure. The stable build and powerful motor make it a versatile solution for professional woodworking—ideal for both carpentry shops and artisan workshops. Key Machine Advantages Cutter-block shaft – three HSS knives 310 × 25 × 3 mm ensure long service life, precise planing, and reduced noise. Massive work tables – cast iron construction minimizes vibration and ensures stable material feed. High power – motor rated at 2.2 kW (S1) / 2.6 kW (S6) provides consistent performance even under heavy loads. Large working area – 310 mm width and up to 180 mm thickness capacity accommodate various workpieces. Efficient chip extraction – Ø100 mm port enables seamless connection to a dust‑extraction system. Construction and Technology Cheupd Sew Ab Two T Usb The PT310ECO is equipped with a 75 mm diameter cutter block that ensures smooth operation and superior durability compared to conventional knives. The planer/thicknesser features cast‑iron tables sized 1290 × 310 mm (surface planer) and 540 × 310 mm (thicknesser), both highly wear‑resistant. Additionally, the machine offers fence angle adjustment from 90° to 45°, enabling precise angled milling. Precision and Performance Maximum planing depth Jointing mode: 3 mm Thicknessing mode: 4 mm Cutter-block rotational speed: 5,500 rpm Stable structure enables finishes ready for gluing, coating, or further processing. A reliable thicknesser for both serial production and smaller‑scale projects. Applications Ideal for: Professional carpentry and furniture workshops Prototyping labs and training centers Maintenance departments in industrial plants Technical schools and vocational institutions Standard Equipment Three‑knife cutter block Cast‑iron work tables Cutter head guard Ø100 mm chip extraction port Feed‑in switch and safety shutdown Optional Equipment Mobile trolley for the machine Chip‑extraction unit Technical Data Specification Value Surface‑planing table size 1,290 × 310 mm Thicknessing table size 540 × 310 mm Cutter-block diameter 75 mm Cutter-block speed 5,500 rpm Number/dimensions of knives 3 knives / 310 × 25 × 2.5 mm Fence angle adjustment 90°–45° Chip outlet diameter 100 mm Max. thicknessing height 180 mm Max. cut depth: planing/thickness 3 mm / 4 mm Motor power (S1/S6) 2.2 kW / 2.6 kW Max. workpiece width 310 mm Gross weight 200 kg
