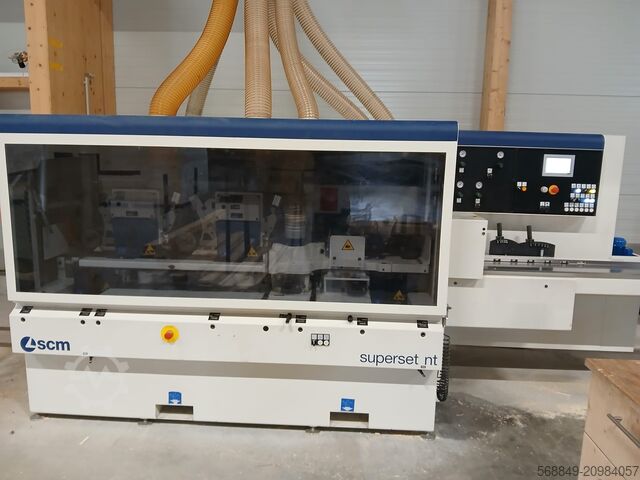

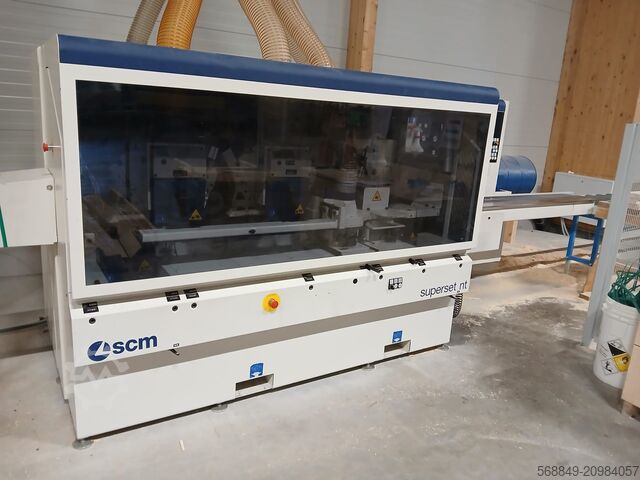

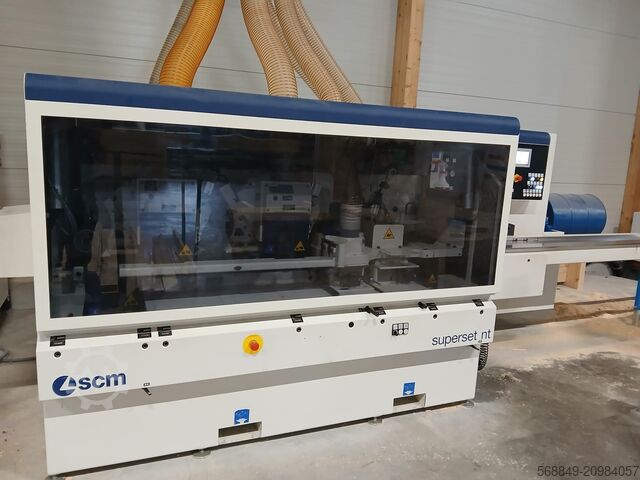

Moulder SCM superset nt

scm · superset nt

Caractéristiques techniques

Description

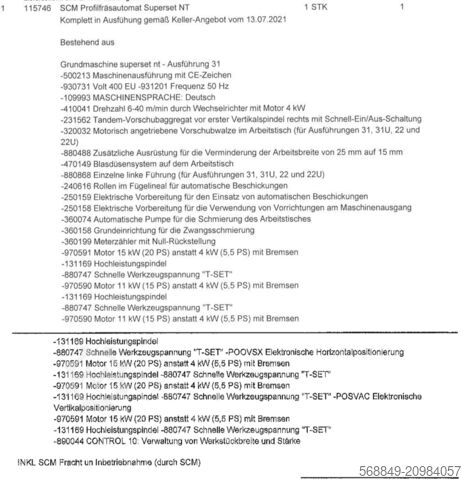

Condition: reconditioned (used), Number of spindles 6 St. Working width 240 mm Working height 200 mm Length of the planing table 2500 mm Feed speed 6-36 m/min. Dimensions (L/W/H) 4900x1700x2000 mm weight of the machine ca. 3500 kg Control SCM Mobile 10 SCM Superset NT PLUS Comp. 31 for window production ----- The machine is in process of partial reconditionning at our facility at the moment. Highlights: - Machine with 6 spindles (2 with HSK mounting) - Spindle speed 8,300 rpm - Working width 240 mm, working height 200 mm - Electronic horizontal and vertical spindle positioning - PRL equipment for glazing bead separation - Air-cushion table - Touchscreen control Technical Data: Working width: max. 240 mm (kit for min. width 15 to 25 mm) Working height: max. 200 mm Feed speed: infinitely variable 6 to 36 m/min via inverter Infeed table: length 2,500 mm Machine weight: approx. 3,550 kg Dimensions: length 4,900 mm / width 1,700 mm / height 1,700 mm 1st Spindle: _____ First bottom spindle, horizontal (jointer/planer) Motor with brake, 11 kW Diameter: 40 mm Speed: 6,000 rpm 2nd Tool Mount (HSK): _____ First right tool mount, vertical Motor with brake, 7.5 kW Speed: 8,300 rpm HSK 85S quick-change system Electronic vertical and horizontal positioning 3rd Tool Mount (HSK): _____ First left tool mount, vertical Motor with brake, 7.5 kW Speed: 8,300 rpm HSK 85S quick-change system with pneumatic unit Electronic vertical and horizontal positioning Electronic tool diameter adjustment (setup) 4th Spindle: _____ First top spindle, horizontal Motor with Brake 11 kW Speed ??8,300 rpm Electronic horizontal positioning Electronic tool diameter adjustment (setup) 5th Spindle: _____ Second horizontal top spindle Motor with brake 7.5 kW Speed ??8,300 rpm Electronic vertical and horizontal positioning Electronic tool diameter adjustment (setup) 6th Spindle: _____ Second horizontal bottom spindle Motor with brake 7.5 kW Speed ??8,300 rpm Electronic vertical and horizontal positioning Additional technical features: _____ - 2 feed units following the top spindles to reduce the axis spacing from 620 mm to 450 mm (for short workpieces) - Driven, motorized feed roller integrated into the machine table - Pneumatic hold-down pressure before the jointing spindle (can be deactivated from the control panel) - Pneumatic feed deactivation for the final unit following the 2nd bottom spindle; operable even when the sound enclosure is closed - Pneumatic "TTL" pressure elements before the first horizontal top spindle - Air-cushion lubrication in the machine table to minimize friction - Manual lubrication pump for the machine table Chsupdozq Hiqs S T Ueb - Central lubrication system for guideways and controlled axes - 5 x electronic horizontal positioning (positions 2 – 3 – 4 – 5 – 6) - 4 x electronic vertical positioning (positions 2 – 3 – 5 – 6) - 3 x electronic tool diameter adjustment (setup) Positions (3 – 4 – 5) - Mobile 10 control system - PRL equipment (Glazing bead package) for cutting out the glazing bead - Soundproofing and safety enclosure with electromagnetic interlock (CE standard) Dust ...
