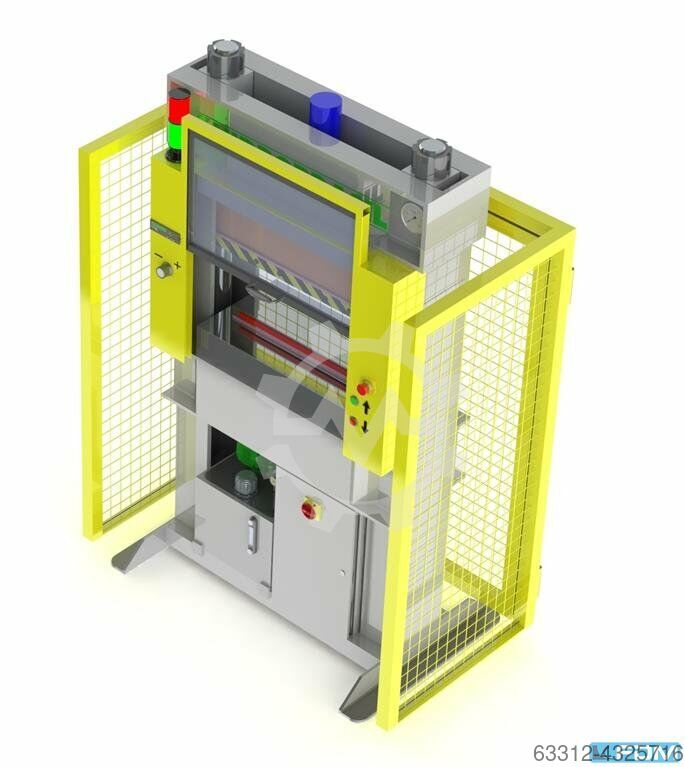

Hydraulic Press Hidrobrasil Vulkanisierpresse

Hidrobrasil · Vulkanisierpresse

Caractéristiques techniques

Description

Condition: as good as new (ex-display), Year of construction: 2023, pressing force: 120 t, table length: 600 mm, table width: 600 mm, Here are the technical data of the offered machine: Technical data + information: HB 2021-A-188, oil hydraulic double column press 120 T bottom piston heating press. - idle speed up to 40 mm/sec - Opening speed up to 40 mm/sec - Starting press speed 5-15 mm/sec - Table size/heating plate size 600 × 600 mm - ram size/heating plate size 600 × 600 mm - 2 heating plates, electrically heated, up to 250 degrees - as OPTION - total size approx. 2000 × 1000 × 2800 mm height - Oil temperature control - Automatic lubrication - Free positioning of the ram - SICK/LEUTZE light barriers 14,1 mm on front side - Circuit oil cooling - Pressure holding valve 0 to 1800 sec. - Rear monitored door - Pressure adjustment from 30 T to 120 T - Travel limitation either by pressure or position - Programming set-up mode, single stroke (adjustable via rotary switch) - Control panel permanently installed in cabinet wall - Two-hand operation - Machine body double painted - Signal light: red: alarm, yellow baking phase, green: ready - Heating plates with electric heating rods, up to max. 250 degrees - Assembly, commissioning, instruction against separate charge Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 1,600 kN Free ripping force max. 200 kN Pressure build-up time closed die steel to steel Max. 8 sec. Dimensions Max. Opening width per compartment 200 mm Stroke and min. opening per compartment 400/200 mm Table height above floor, without heating pl. 850 mm Height above floor (overall height) approx. 2.800 mm Hall height min. 3,500 mm Parallel deviation at 20 °C +/- 0.1 mm Deflection Determined at max. clamping force with 70 % occupancy ≤ 0.2 mm/m Total weight of the press without operating materials approx. 9 to Accessories: 4 HEATING PLATES 500 × 400 mm, max. heating capacity Equipped with temperature sensor 300 degrees Speeds Fast closing with 15 mm sec. Pressing speed 10 mm sec. Sound pressure level, measured at 1.5 m height at the control panel according to DIN 45635-T16-KL3 max. 8 db(A) Number of pressing cylinders 1 pc. Operating pressure max. 240 bar Pressing pressure build-up time 4 sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH gear pump approx. 48 L/min Oil volume approx. HLP 46 MW 300 liters Ambient temperature max. 40 °C Oil temperature max. 55 °C Automatic pressure readjustment after 5 % pressure loss Pressure stabilization for up to 1800 sec. Electrical system Main supply 400 V AC Control voltage Cjujk S Dt Topd S T Ujhb Hydraulic pumps 24 V DC 24 V DC Frequency 50 Hz Connection hydraulic main motor 15 kW Total connection approx. without heating plates 19 kW ##### If the press does not exactly meet your requirements, please click to request an individual offer exactly according to your needs: Contact us for an individual offer HIDROBRASIL manufactures presses exactly according to your requirements at surprisingly low prices! Our great strength is special machine construction and press automation. We sell customized hydraulic presses, press brakes and impact shears at surprisingly low prices. For the hydraulics of the presses we mainly use components of leading European manufacturers.
