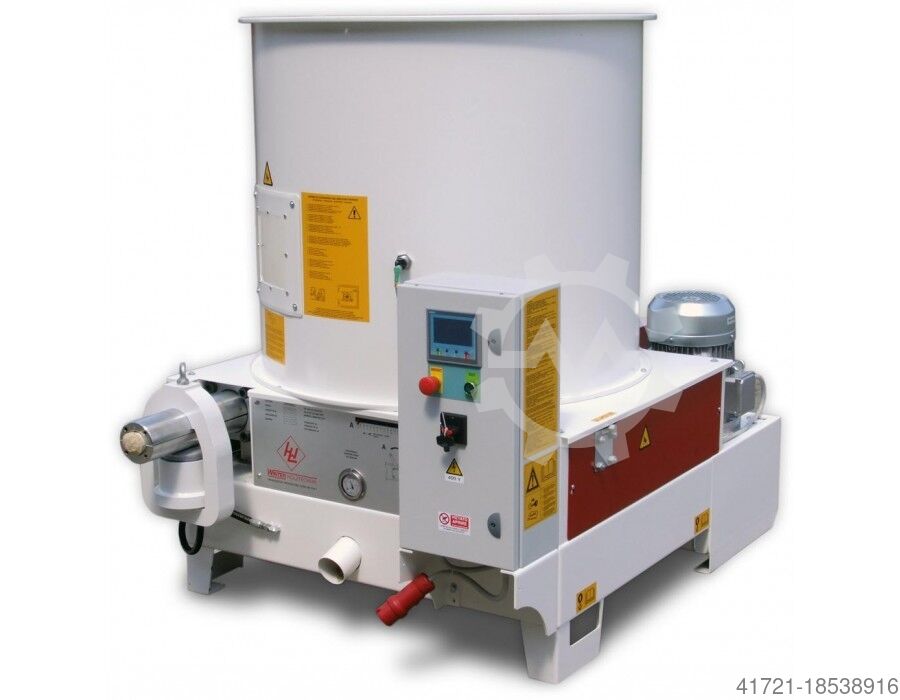

Hydraulic briquetting press WINTER BP-60

WINTER · BP-60

Caractéristiques techniques

Description

Condition: new, Year of construction: 2026, functionality: fully functional, machine/vehicle number: HaRo2020, total width: 800 mm, total height: 1,100 mm, total length: 1,200 mm, briquette diameter: 60 mm, overall weight: 300 kg, warranty duration: 12 months, type of input current: AC, input voltage: 400 V, power: 3 kW (4.08 HP), Equipment: emergency stop, Our new HaRo2020 briquetting press, with a capacity of up to 40 kg/h, automatic tongs, and pre-compactor, is manufactured by ourselves. You can only purchase this machine directly from us, as we do not use intermediaries. The briquetting presses are CE-compliant and manufactured according to the latest standards. Since we produce most of the components in-house, we can offer the machine at a particularly competitive price. Price is exclusive of VAT. The new hydraulic unit is equipped with a SILENCE-PUMP, making the machine extremely quiet in operation. Another benefit of the helical gearing in the pump is increased durability. Everything is made in Germany! You are welcome to visit us and test the machine with your own material. When purchasing our briquetting press, you will receive a detailed and comprehensive German (PDF) operating manual for this machine. The input material must have a moisture content below 15%—ideally 10 to 12%—for sawdust and planer shavings. Technical Data – Hydraulic unit: 3.0 kW (connected load) Cholp Usw A Hvdj Alcsb – Power consumption per hour: approx. 1.8–2.0 kWh – Throughput: approx. 15–40 kg/h – Voltage: 400 V – Frequency: 50 Hz – Circuit protection: 16 A plug – Power cable length: 3 m – Hydraulic control with Bosch Rexroth valves – Briquette diameter: 60 mm (length varies according to material) – Motor equipped with motor protection switch and emergency stop—for operator and machine safety, including motor protection – No electronic components prone to failure such as controllers, sensors, or complicated electronics – Pressing without additives – Counter-pressure adapts fully automatically to your material – Thanks to the pre-compactor, bulky shavings are no problem – No adjustments or monitoring of the pressure required – Fully automatic operation Spare parts supply is guaranteed, as we manufacture the machines in small series in our facility in Germany. The large oil tank ensures that the oil will not overheat during continuous operation. Machine dimensions: Length: 1.25 m Width: 0.82 m Height: 1.11 m Feed hopper: Diameter approx. 80 cm x height 60 cm Weight: 300 kg The briquetting press is immediately operational and does not require installation—just plug it in and start working. The machine can be viewed and tested on-site. You are welcome to send us a sample of your material for testing; we find this is the most effective method.
