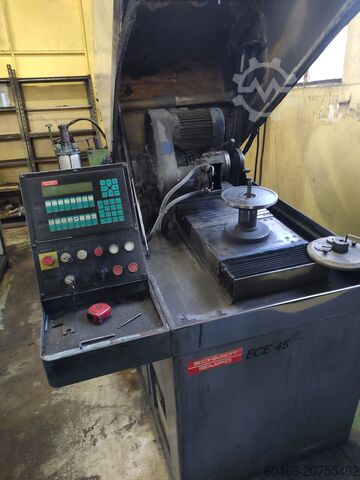

HSS saw grinder SCHMIDT TEMPO ECE45

SCHMIDT TEMPO · ECE45

Caractéristiques techniques

Description

Condition: refurbished (used), functionality: fully functional, grinding wheel diameter: 150 mm, year of last overhaul: 2026, disc diameter: 150 mm, grinding spindle motor power: 2,200 W, compressed air connection: 5 bar, The machine has been completely disassembled, all wear parts have been replaced, and it has been repainted – it is in like-new condition. Sale includes a functional guarantee. Key features: - For resharpening and re-toothings of HSS segment, CV, and solid carbide saws using the CBN deep grinding process Tooth form A, Aw, B, Bw, and C according to DIN1840 - Grinding of Vario teeth (option) - Grinding of special teeth (option) - Grinding of carbide teeth (option) - Grinding of segment teeth (option) - Freely adjustable (programmable) tooth geometry - Grinding of repair segments for segment saws Chs Nspgkgqjryzihjb - Chamfering on alternating top/bottom or on one side - Rake and clearance angles can be continuously adjusted - Improved machine guard for easy opening/closing Key advantages: - Short grinding times with high surface quality due to stable machine design with adapted clamping flanges for the saw blades and high drive power. - Consistent, repeatable quality thanks to CNC control - Powerful grinding wheel drive - Fully digital servo drives (2 CNC axes) Technical data: - Saw blade diameter 20-550 mm - Maximum saw blade thickness 6 mm - Number of teeth 20-999 - Working speed 3-75 teeth/minute - Cooling approx. 5 bar at 40 l/min - Grinding wheel drive 2.2 kW - Dimensions L x W x H approx. 1750 x 1200 x 1800 mm - Net/gross weight approx. 800/980 kg - Paint color: Dove blue Accessories: - Software for grinding curve teeth, bevel teeth, circular grinding (Software extensions such as special teeth, Vario teeth, carbide teeth, available on request) - Saw blade arbors, diameter 400, 300, 215, 180, 140 mm (other sizes available on request) - Conversion to English language (keyboard input) possible - Reducing rings, diameter 16x22, 27, 32, 40, 50 mm (other sizes available on request) - Multiple grinding wheels, new and used, included - Basic arbor for saw blade arbors - Mechanical clamping nut - Cooling system incl. high-pressure pump, mist extraction, and magnetic separator, designed for cooling with emulsion. - Automatic central lubrication with lubrication pressure monitoring (linear guides + ball screw drive) - Operating manual incl. circuit diagrams - Operating voltage 400 V A trade-in of your existing used ECE 45 is possible. Spare parts that may be required later can be supplied by us.
