Horizontal panel saw Giben Y 3000 SPT

Giben · Y 3000 SPT

Caractéristiques techniques

Description

Condition: used, Year of construction: 2008, · Working area X-Y-Z: 3,660 x 1,550 x 130 mm · Travel length X-Y: 4,200 x 2,000 mm Description of the units and accessories (base) The structure of the base body is a monolithic construction made of thick-walled steel. It is stiffened by welded triangular plates across the entire machine bed, making it extremely stable. The triangular shape used for load-bearing parts, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user an optimal workflow despite minimal space requirements. The base body constructed in this way therefore offers the machining unit a balanced and secure base with particularly good load distribution. The mobile unit carrier in gantry design is made of a solid monoblock. It is positioned in the X direction on prismatically ground guides via recirculating ball slides. The work unit is mounted on this mobile unit carrier on prismatic, ground guides and a recirculating ball slide. Axis movement: The drive system in the Y and Z axes is provided by ground, high-precision recirculating ball screws. The X-axis is driven by a backlash-free, preloaded precision rack and pinion drive. This ensures balanced load distribution during the positioning process. This characteristic is important for ensuring balanced movement even in more complex tasks. The various axes are driven by brushless three-phase servo motors/brushless AC motors. These offer excellent positioning speeds thanks to very short ramp times. Furthermore, the measuring system is fully integrated into these motors. These properties make this type of drive completely maintenance-free. · Rapid traverse in X: 40 m/min · Rapid traverse in Y: 60 m/min · Rapid traverse in Z: 22.5 m/min Vacuum system (basic) · Vacuum pump: 100 cbm/h · Power: 2.5 kW · Max. negative pressure (connection) 0.9 bar Control / control cabinet · Office PC or industrial PC (see options) · Basic NC control: ESA-GV KVARA 6.0 · Cable remote control with the most important functions ELECTRIC/ELECTRONIC CNC CONTROL Universal is equipped with a powerful NC control. The integrated office PC gives the NC control an unparalleled level of familiarity: the software runs on Windows XP and allows quick and easy programming, which is easy to learn even for inexperienced users. The system is open and allows the connection of CD-ROM drives, audio cards, barcode readers, modems, printers, scanning systems, etc. Furthermore, the installation of all network systems, as well as all commercially available CAD programs, is possible. To reduce space, the control cabinet is located under the machine table, and the operator works at a separate terminal on casters, which can be freely positioned. XILOG PROGRAMMING SYSTEM Software features: - Import of DXF files - Import of ASCII files - User interface in the operator's native language (available for languages I - GB - F - D - E) - Linear and circular interpolation in three axes, linear in space, spiral in the selected plane - Assisted programming - Calculator for direct transfer of calculated data - Graphic and syntax aids for drilling and milling operations - Parametric programming to perform the same panel machining on different Cjbovvi Rfewd Amgfehb

Annonces similaires

Double-sided planer OSI SCP - 450

Sur demande

Séchoir à bois BIGonDRY 3 x 100 m3

Sur demande

Ponceuse large bande / Calibratrice SICAR UNICA 2R – 2 rouleaux

Sur demande

Scie à panneaux SELCO WNTR 710

Sur demande

Wide belt sander Levigaltecnica 1100

5 300 €

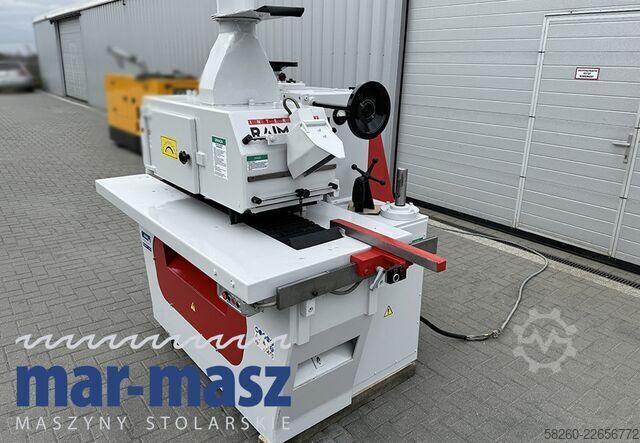

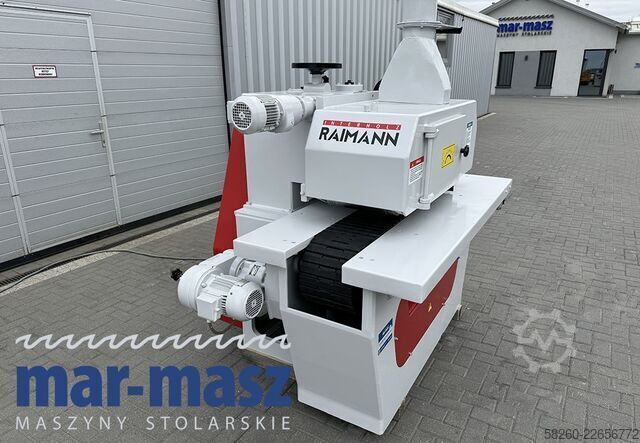

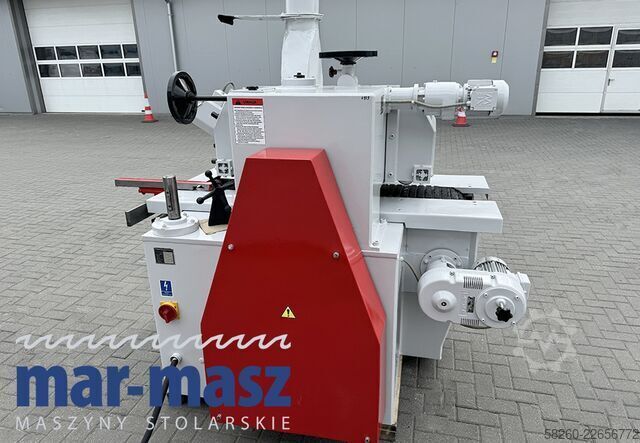

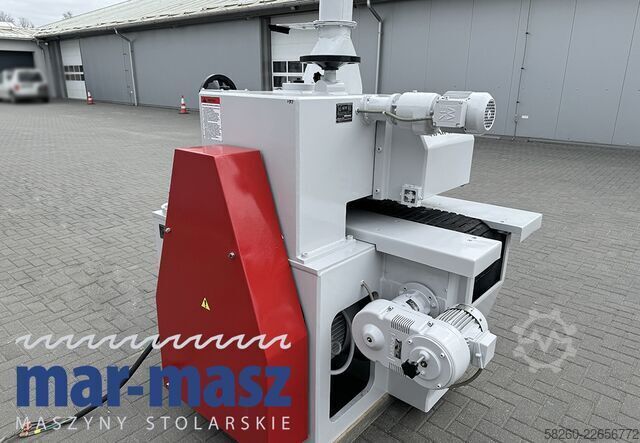

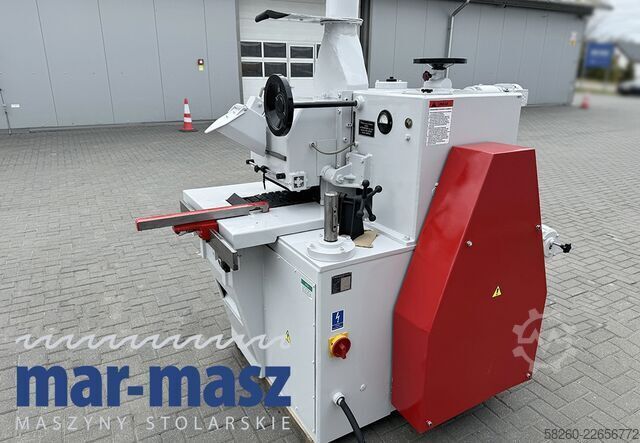

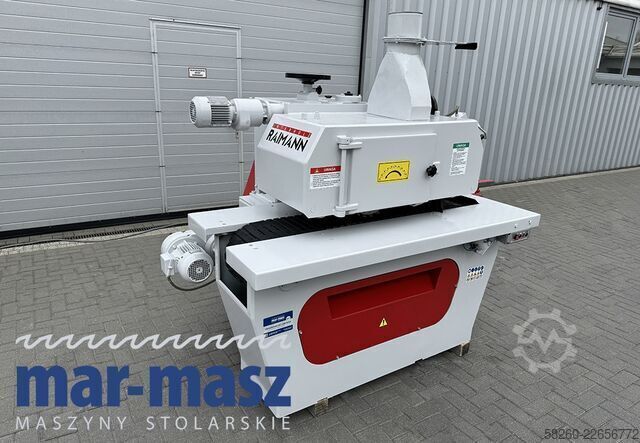

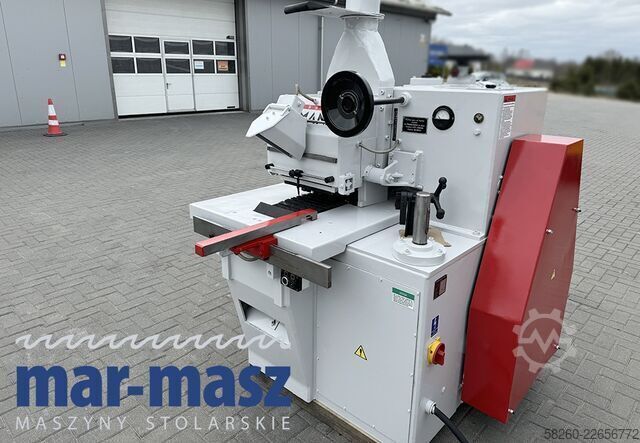

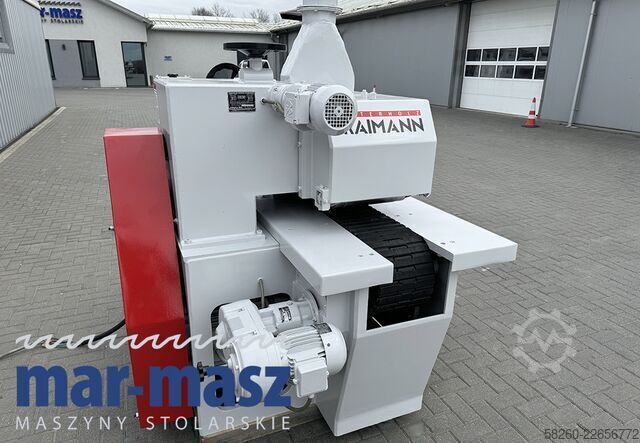

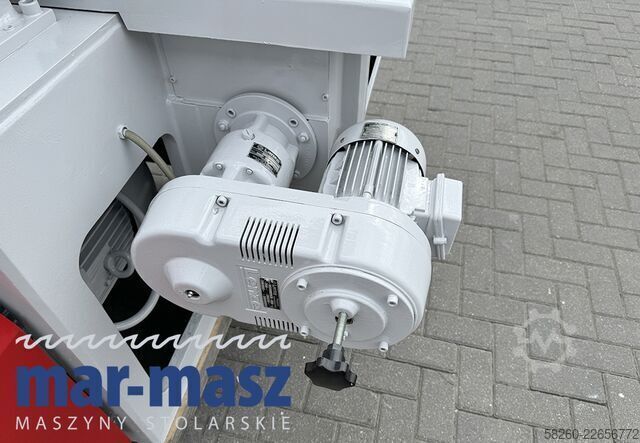

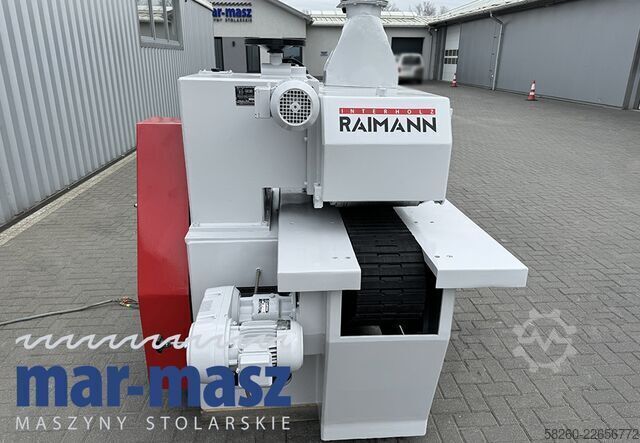

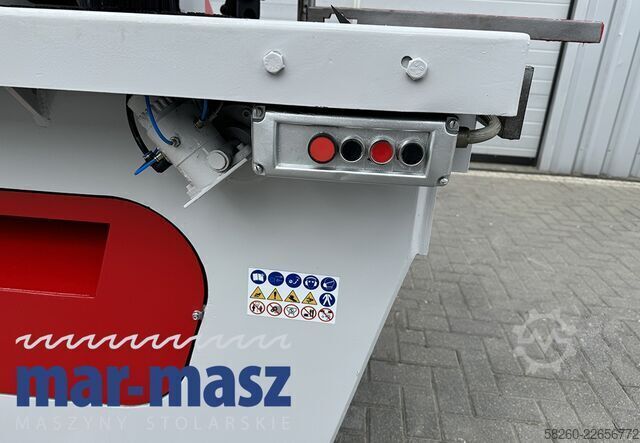

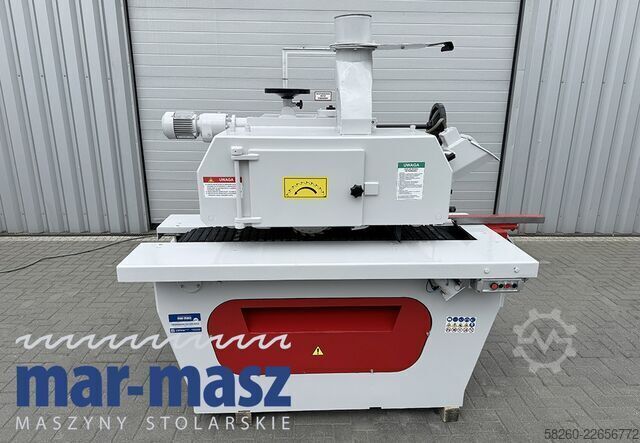

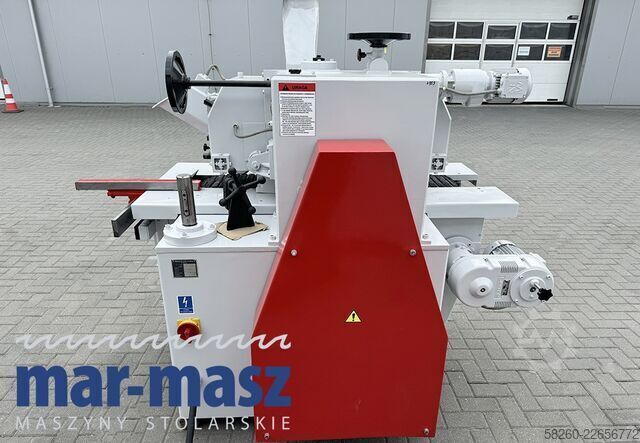

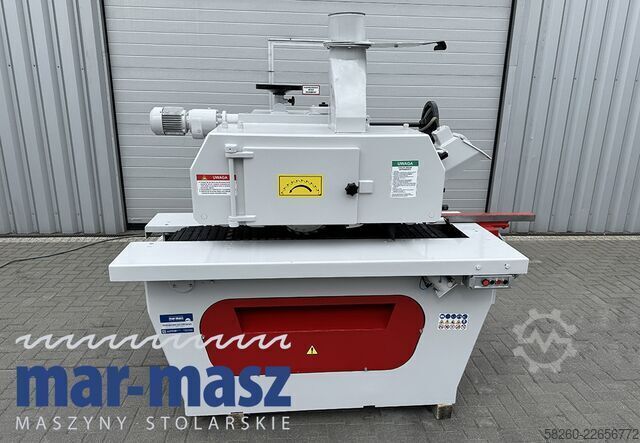

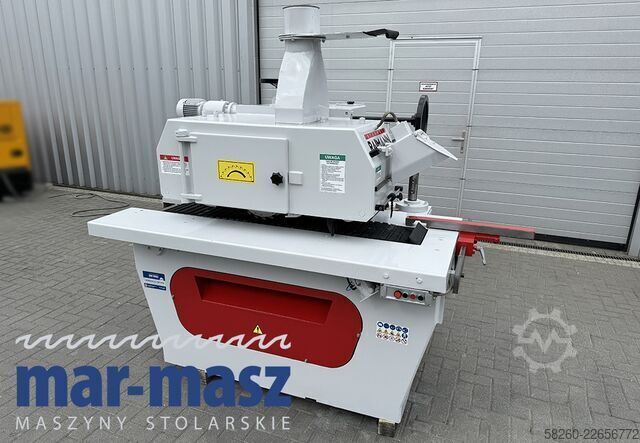

Scie multilame RAIMANN Econorip 310 340/110
