Heavy duty shelf 4 Stück Kragarmregal-Ständer einseitig Höhe 3 m / Nutztiefe 1,2 m / Länge 4 m

4 Stück Kragarmregal-Ständer einseitig · Höhe 3 m / Nutztiefe 1,2 m / Länge 4 m

Caractéristiques techniques

Description

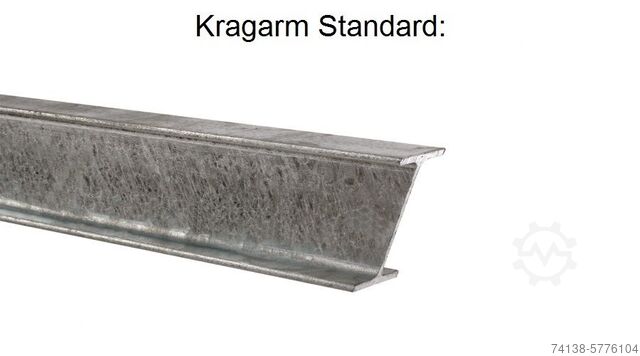

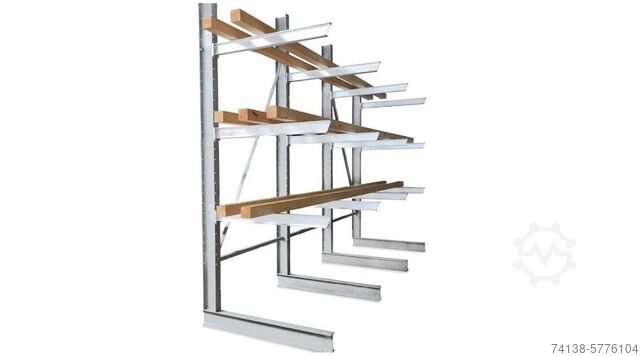

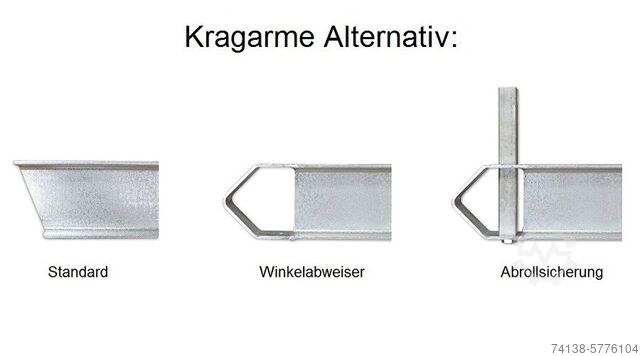

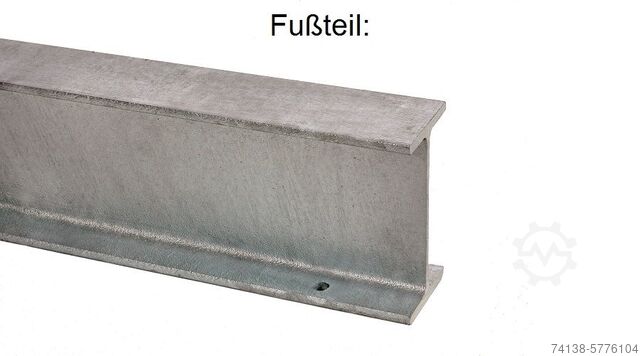

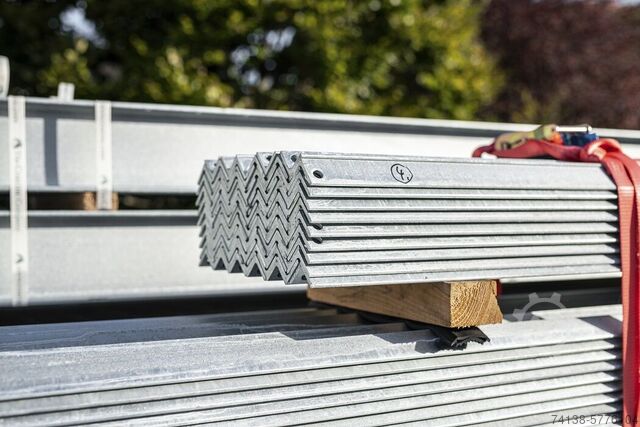

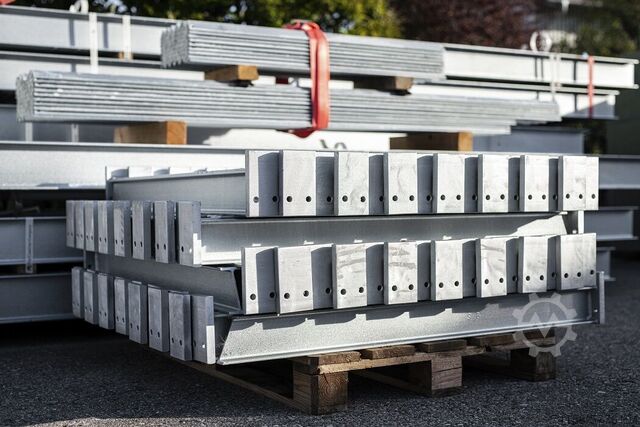

Condition: like new (used), Year of construction: 2025, Used cantilever rack: Bolted system in hot-dip galvanized finish Scope of delivery: 4 rack uprights, height 3,000 mm, with base section 1,200 mm 12 cantilever arms with 1,200 mm usable depth, standard Including longitudinal and diagonal bracing for 1,300 mm center distance Incl. fastening material (without floor anchors) - (*Delivery time approx. 1 week) - (*No damaged parts!) - (*Spare parts can be reordered and expansion is possible at any time) - (*Offer available in larger quantities: approx. 50 uprights in stock) Detailed description: - Stable steel construction made of IPE profiles (bolted system) - Surface hot-dip galvanized - Rack height 3,000 mm - Load capacity per upright 2,250 kg - Base section and cantilever arms with 1,200 mm usable depth - Cantilever arms adjustable in height in a 100 mm grid - 3 bolted cantilever arms per upright, standard (= 4 storage levels) - Load capacity per cantilever arm 750 kg - Including longitudinal and diagonal bracing for 1,300 mm distance - Rack length = 4,000 mm - Including fastening material (without floor anchors) - With assembly instructions and load signs C4 according to DIN standard - Telephone technical consultation - Made in Germany - Short delivery time - On-site collection possible Our cantilever racks are produced exclusively in Germany. Chebofdkbhewb S Dyteb We offer reliable transport with notification before delivery. The material is packed in a way that facilitates easy unloading. When installed outdoors, the load-bearing capacity is reduced by the wind and snow load. The base must be made of concrete, level and suitable for dowels, and must be able to withstand the applied loads. The customer is responsible for checking and ensuring the ground conditions and load-bearing capacity, as well as any necessary official permits. The rack uprights must be anchored in the ground on site; anchoring to the wall is not necessary and is not recommended. According to the occupational accident insurance association, it is recommended that the rack uprights have a minimum of 500 mm overhang from the top edge of the upright on the uppermost storage level.
