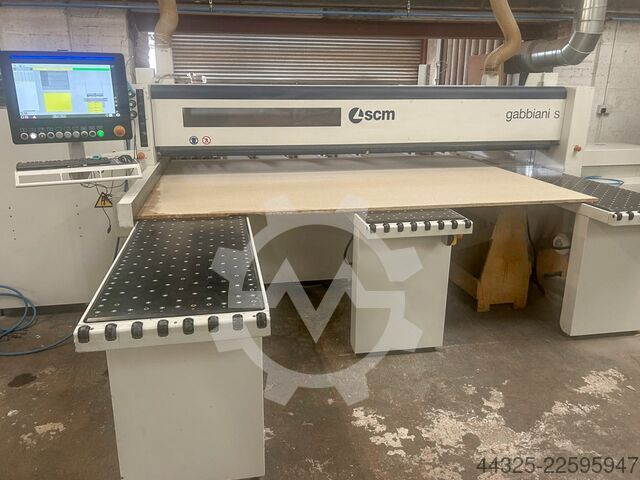

Front-Loading Panel Saws SCM GABBIANI S115

scm · GABBIANI S115

Caractéristiques techniques

Description

Condition: new, Year of construction: 2025, functionality: fully functional, power: 9 kW (12.24 HP), cutting height (max.): 82 mm, saw blade diameter: 315 mm, rotational speed (max.): 4,400 rpm, total length: 3,300 mm, total width: 3,350 mm, overall weight: 3,000 kg, cutting length (max.): 3,300 mm, feed rate X-axis: 100 m/min, feed rate Z-axis: 150 m/min, saw blade speed: 4,400 rpm, saw drive: 9,000 W, Equipment: rotational speed infinitely variable, SCHEER PA 4500 – 3300 x 3350 S7WIN10 Year of manufacture: 2025 | Condition: NEW | Control: PA-WIN10 + SIMATIC S7 | Powerful panel dividing system for highest precision & efficiency The SCHEER PA 4500 is a robust, industrially proven panel dividing saw for the precise processing of coated and uncoated wood-based panels. It was designed for demanding applications and already meets all the requirements of modern cutting operations in its basic configuration. Main technical data: Cutting length (max.): 3300 mm Cutting height (stepless): up to 82 mm Main saw blade: Ø 315 mm | 60 teeth | cutting width 3.2 mm Scoring saw blade: Ø 200 mm | conical | cutting width 3.2–4.0 mm Saw motor: 9.0 kW Scoring motor: 1.1 kW Saw carriage drive: 2.32 kW Choupd S Tewrpcxo Ueb Main saw blade speed: approx. 4400 rpm Saw carriage feed: 0–100 m/min (stepless adjustable) Saw carriage return: 150 m/min (lowered) Electrical connection: 400V / 50Hz / 3Ph Pneumatics: 6 bar, 15 NL/stroke Extraction: 3 x 140 mm | Capacity: 3300 m³/h at 20 m/s Working height: approx. 930 mm Angle stop: left Machine concept & highlights: Heavy cast honeycomb construction for vibration damping Absolute value encoder for highest positioning accuracy (no referencing) Distance- and time-optimized saw carriage operation Automatic oil mist lubrication & blowing of the guides Program-controlled saw blade adjustment (height & scoring side) ProLock quick-release system for the saw blade “wood dust tested” – emission only 0.65 mg/m³ System equipment: 1x angle pressing device WP 8500-1400 Adjustment range: 0–2200 mm Pressing force: approx. 480 N Cycle-controlled retraction function for panel transport 1x material feed table HP 5130 – 33 x 33 Mounted at the back with hardened guides & racks Roller conveyor system for easy panel transport 6 clamping fingers (spacing: 70 / 262 / 454 / 838 / 1173 / 2630 mm) Servo drive with ±0.1 mm accuracy 1x angle stop table HP 5137-1-1465 1x workpiece support table HP 5135-1-1465 Pertinax coating, each 1465 x 800 mm 1x air cushion unit LK 5169 central radial fan, pressure max. 2800 N/m² 1x control cabinet dustproof, separately mounted, vibration protected 19" TFT flat screen, keyboard, trackball Control & software: SIMATIC WinLC RTX soft PLC with S7 functionality PA-WIN10 operating interface on Windows 10 Professional (64 bit) (update to the latest Windows version possible at any time) True-to-scale real-time simulation and graphical cutting plan editor Integrated interfaces (label printing, panel warehouse management, etc.) Network-capable, future-proof, modularly expandable Operating modes & operation: Manual operation: single, chain dimension, trimming, residual cutting Automatic operation: cutting plan processing, online order processing Editor: parts list-based planning & optimization Maintenance & diagnosis: saw blade measurement, individual control, and more 📞 Contact us for an individual offer or a viewing. Delivery, installation, commissioning, and training possible as options.
