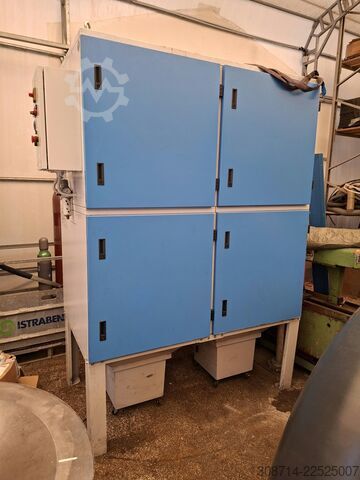

Extraction system Siapro PC 8 TV

Siapro · PC 8 TV

Caractéristiques techniques

Description

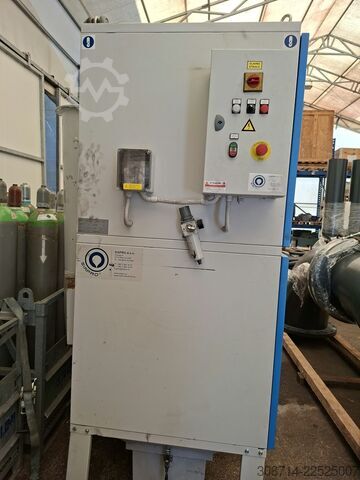

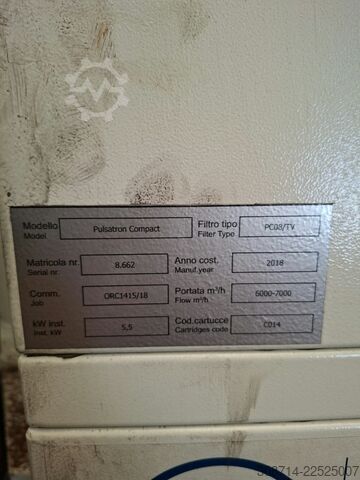

Condition: used, Year of construction: 2018, functionality: fully functional, input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, volume flow: 6,000 m³/h, intake manifold diameter: 250 mm, filter area: 80 m², noise level: 85 dB, actuation type: electric, total height: 3,000 mm, total length: 2,000 mm, total width: 1,200 mm, overall weight: 600 kg, Equipment: CE marking, Used filter, model PC 8 TV, in excellent condition, like new. Year of manufacture: 2018 The electrical control cabinet for the filter is included. Upon purchase, the filter will be supplied with 8 new filter cartridges. Technical data of the PC 8 TV filter: No of cartridges: 8 pcs Filtering surface cartridge m²: 10 Filtering surface collector m²: 80 Total capacity m³/h: 6.000 Csuplasztqcte Nmshb Size of the cartridge mm: Ø325-600 No. of valves pcs: 8 El. motor power kW: 5,50 Static pressure Pa: 1.800 Air consumption max. m³/h : ~40,00 Dimension of filter A (length) mm: 1.700 Dimension of filter B (width) mm: 930 Dimension of filter C (height with silencer) mm: 2.950 Inlet flange Ø mm: 2x250 We reserve the right to errors in the data provided. We accept no liability for any errors or inaccuracies in the description or technical specifications.
