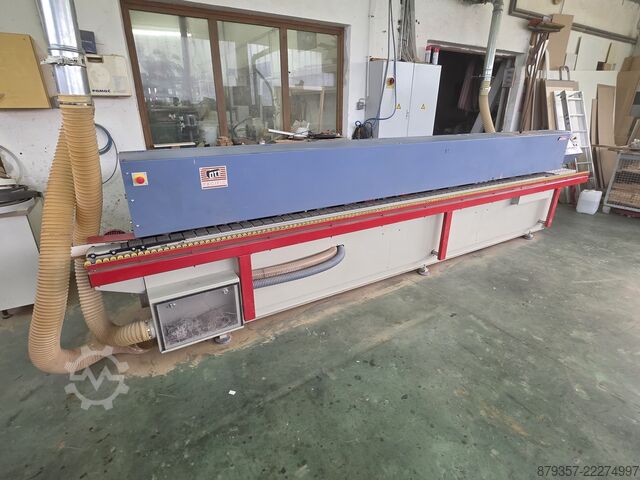

Edgebander Ott Pacific V6-F

OTT · Pacific V6-F

Caractéristiques techniques

Description

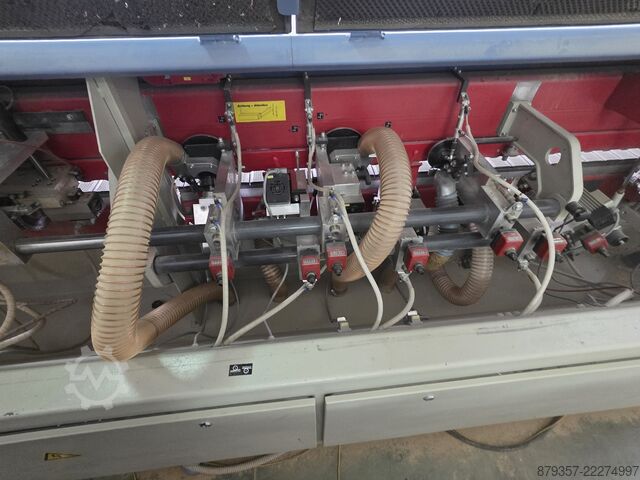

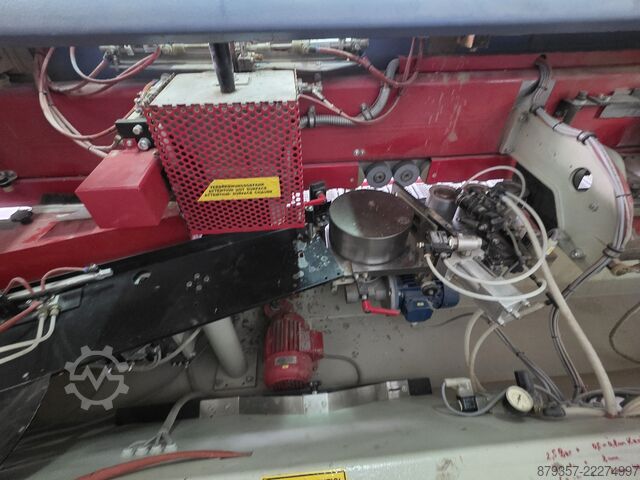

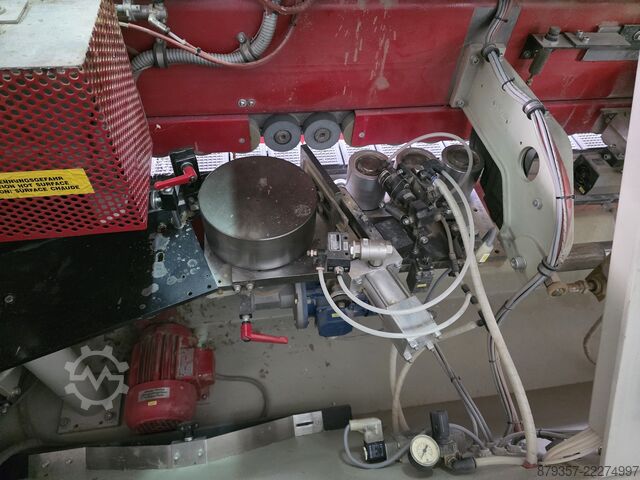

Condition: used, Year of construction: 2000, Edge banding machine, single-sided Manufacturer: OTT Type: Pacific V 6-F Year of manufacture: 2000 Technical data: Edge thickness: 0.2 - 6 mm Workpiece thickness: 8 - 42 mm Workpiece width: min. 70 mm Workpiece length: min. 0 mm Feed speed: 12 m/min Electrical connection: 3 x 400 V, 50 Hz Extraction: 2 x 120 mm at 20 m/s Extraction capacity: m³/h Equipment, processing units: Edge trimming 2 x 1.5 kW, 12,000 rpm, 200 Hz two tool-controlled spindles Gluing unit Rapid heating tank with Melt-matic automatic edge magazine with optical monitoring for strip edges in fixed lengths Release agent spraying device Cutting unit 2 x 0.2 kW, 12,000 rpm, 200 Hz automatic pivoting 0 / 3 Flush trimming unit x 0.43 kW, 12,000 rpm, 200 Hz Radius trimming unit R2 - R5 2 x 0.3 kW, 12,000 rpm, 200 Hz 2 quick-change stations for trimming units Corner rounding trimming unit 2 x 0.3 kW, 12,000 rpm, 200 Hz Scraper blade 2 x carbide scrapers Smoothing unit 2 x 0.2 kW, 2,800 rpm, 50 Hz Weight: 2,000 kg Note: Choupd Sszuyh Uo T Ujb The technical data and descriptions are copies of the order confirmation from that time. The information is provided for informational purposes only and is not binding.
