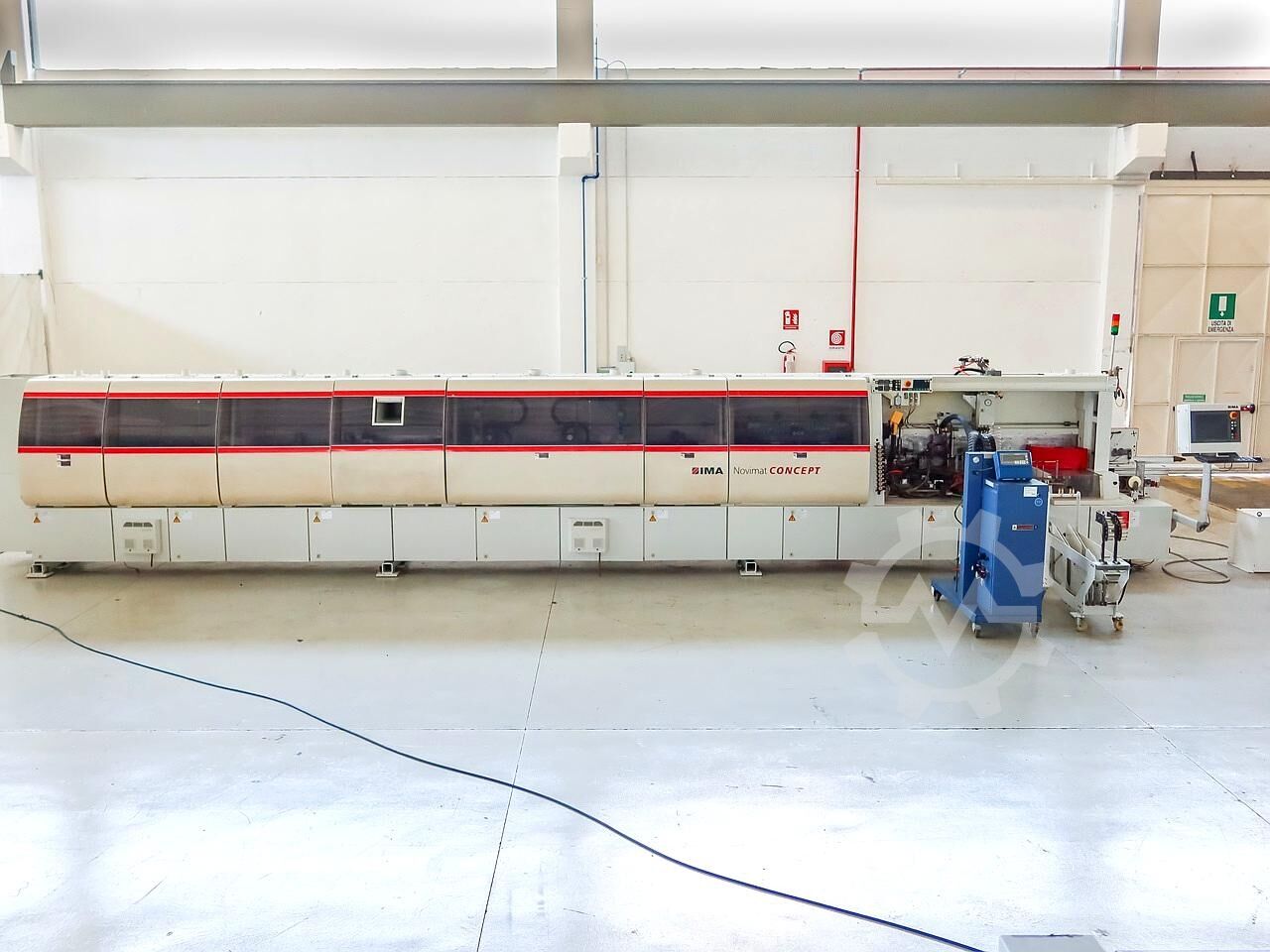

Edgebander IMA NOVIMAT I/G80/650/R3

IMA · NOVIMAT I/G80/650/R3

Caractéristiques techniques

Description

Condition: used, Year of construction: 2009, Edge banding machine Manufacturer: IMA Type: Novimat/I/G80/650/R3 Year of manufacture: 2009 Technical data - Workpiece overhang from the chain conveyor: 38 mm - Feed width: min. 65 mm (with max. workpiece thickness of 25 mm) - Workpiece length in feed direction: 150 mm - Overall height (top edge of chain conveyor): 960 mm - Feed speed: approx. 6 - 30 m/min, electrically adjustable - Machine control system ICOS open compact Workpiece - Workpiece length: min. 150 mm - Workpiece width: min. 65 mm - Workpiece thickness: 8 - 40 mm (with edge trimming function) / 60 mm (without edge trimming function) - Smallest workpiece: 150 x 150 mm or 65 x 300 mm - Edge material: paper, plastic and veneer - Height: 14 - 65 mm - Roller material thickness: 0.3 - 3.0 mm (veneer edges limited to max. 1.0 mm) - Max. upper edge overhang: 5 mm Units Infeed area - Release agent applicator mounted at the top and bottom, not adjustable Edge trimming - 2 motors 4.5 kW, 150 Hz, 9000 rpm - incl. frequency inverter with braking function - Motor 1 counter-rotating - Motor 2 co-rotating Gluing unit VTG 3-6 - with one preheating nozzle 300 mm for preheating the workpiece edge - 6-position edge magazine for roller material 0.3 - 3 mm thick. - 1 driven main pressure roller and 4 pressure rollers, with scraper, pneumatically adjustable Glue application - with pneumatic quick-lock system - Chem-Coat coating - electronic temperature control - Volume 0.8 l Pre-melting tank approx. 1 l - Heating power 3 x 400 W - with EVA glue, approx. 7.0 kg/h - with filler-free glue, approx. 5.0 kg/h Cutting unit - 2 motors 660 W, 200 Hz - incl. frequency inverter with braking function - pneumatic pivoting 0+25 for straight and bevel cutting Flush trimming - 2 motors each 1000 W, 400 V, 200 Hz, 12000 rpm - with HSK 25 shank - incl. frequency inverter with braking function Multi-profile trimming unit - 2 motors each 660 W, 400 V, 200 Hz, 12000 rpm - with HSK 25 shank - incl. frequency inverter with braking function - for trimming 4 profiles - with stepper motor axes for horizontal and vertical positioning Contour trimming unit KFA x30 - 1 motor 500 W, 400 V, 400 Hz, 18000 rpm - Program-controlled conversion for up to 4 profiles - incl. fine positioning for different edge thicknesses Multi-profile scraping blade - Stepper motor axes for horizontal and vertical positioning - Scanning from above and below (max. 4 profiles) - Scanning from the side via pneumatic pressure Spray nozzles at the top and bottom for applying cleaning agents - fixed, not adjustable Surface scraping blade - with height sensing skid - electronically controlled horizontal positioning Buffing unit - 2 lower and 2 upper motors, 180 W, 50 Hz, 1400 rpm - 1st motor pair with cloth-sisal discs 50x160x19 mm - 2nd motor pair with polishing discs 50x160x19 mm - The motors operate in the same direction and are both tilted and pivoted in the feed direction. - Each motor can be individually adjusted vertically Chsupd S Tezuyi Es Ujb 2x NC-controlled grooving - 2 milling motors each 4.5 kW, 150 Hz, 9000 rpm - incl. frequency inverter with braking function - one manual 90-degree pivoting device from 180 -270 with co- and counter-rotating function - Horizontal, stepless adjustment with AC servo motor for grooving unit Workpiece return Note: The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is non-binding.
