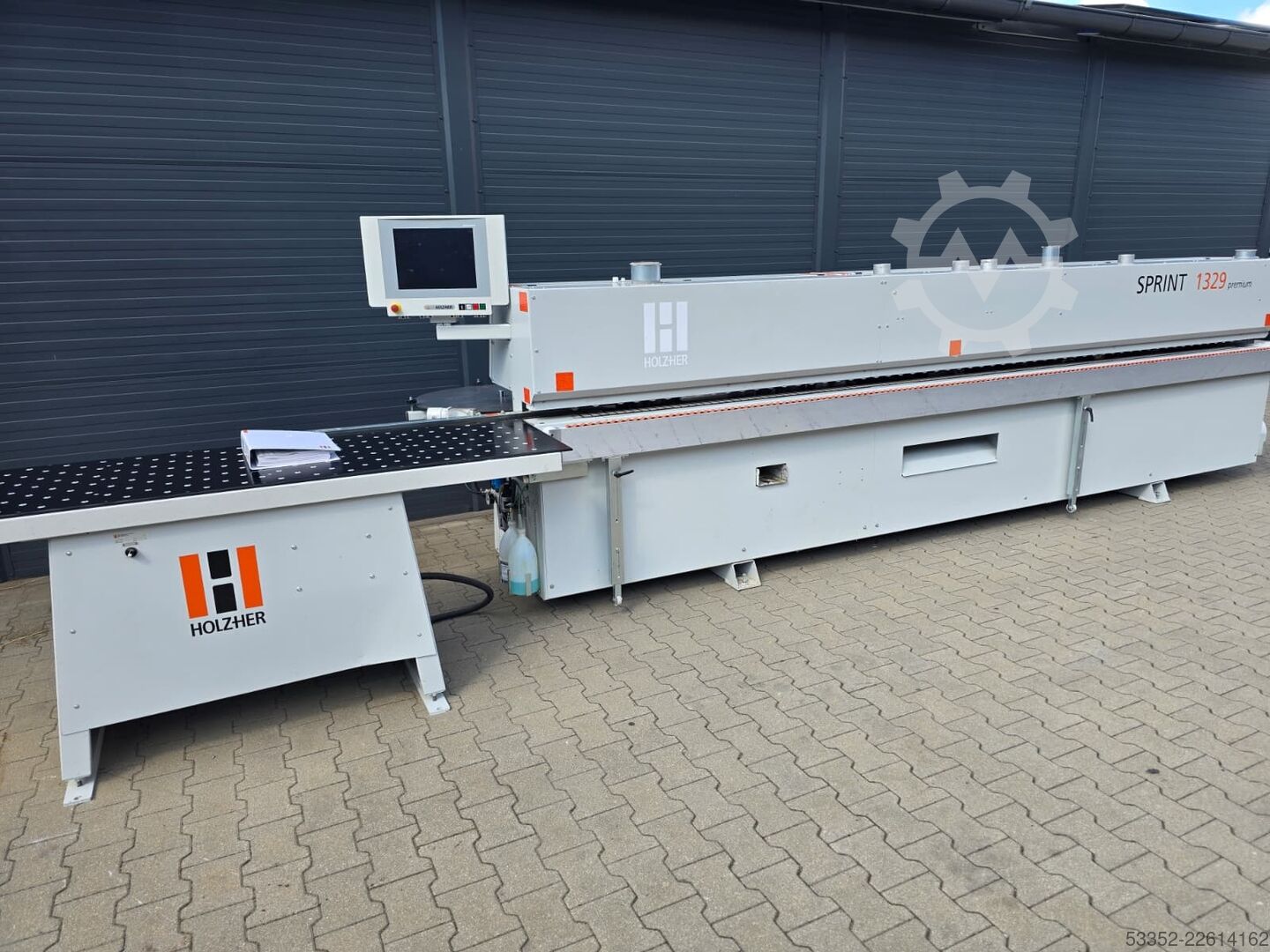

Edgebander HOLZ-HER Sprint 1329 premium

Holz-Her · Sprint 1329 premium

Caractéristiques techniques

Description

Condition: ready for operation (used), Year of construction: 2018, machine/vehicle number: 974/1-810, functionality: fully functional, operating hours: 1,483 h, workpiece height (max.): 60 mm, feed rate X-axis: 18 m/min, controller model: Edge Control 19 mit 18,5" Touchscreen, The machine was last serviced in February 2026 and will continue to operate until August 5, 2026. The machine has the following configuration: Edge milling unit 1802 Motor power: 2 x 2.0 kW 1st milling cutter: Diamond Ø 70 x 64 x 30 mm, Z2+2, left-hand rotation for edge milling unit 2nd milling cutter: Diamond Ø 70 x 64 x 30 mm, Z2+2, right-hand rotation for edge milling unit Edge feeder 1901 SYNCHRO (fully automatic) Glue application station Glu Jet GJ301 (automatic) Power: 2.3 kW, 50 Hz Cartridges: Reservoir for 14 cartridges (1.4 kg) GluJet collection container Printing unit 1913 MOT Cutting unit 1918 (60 mm) pneumatic Multi-function milling unit 1826 MOT4 Motor power: 2 x 0.65 kW Air Stream System milling cutter: Diamond Ø 58 mm x 24 mm, Ø 20 mm Z = 2 R = 2 mm, left-hand rotation Air Stream System milling cutter: Diamond Ø 58 mm x 24 mm, Ø 20 mm Z = 2 R = 2 mm, right-hand rotation Profile milling unit 1833 MOT4 1st milling cutter: Diamond Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4 Radius R = 2 mm, left-hand rotation with CM technology 2nd milling cutter: Diamond Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4 Radius R = 2 mm, right-hand rotation with CM technology Scraping blade unit 1929 MOT4 Tungsten carbide reversible inserts for scraping blade holder R = 2 mm (2 pieces required) Surface scraping blade FK 701 Smoothing unit 1940 (2 x 0.12 kW, 50 Hz, 1400 rpm) Spray device 1856 TECHNICAL DETAILS Feed speed: 10 - 18 m/min Workpiece length min: 160 mm Workpiece width min: 60 mm Workpiece thickness: 8 - 60 mm Edge height max.: 65 mm Chjupd S Tszrf Nre Uob Edge thickness roll material: 0.4 - 3 mm Edge thickness strip material max.: 8 mm MACHINE DETAILS Control: Edge Control 19 with 18.5" touchscreen Infeed guide rail length: 1,350 mm Electrical system for stepless feed: 400 V / 50 Hz Feed electric motor: 2.2 kW Operating hours: 1,483 h EQUIPMENT Motorized pressure bridge adjustment Nesting - tactile probe vertical, top & bottom Edition 18 package ECO MODE energy-saving mode ITronic system
