Coordinate measuring machine Werth

Werth · 840 D, number of axes: 3, This DMG MORI CTX Beta 800 4a was manufactured in 2014. It features a Siemens 840 D control system, a counter spindle, and a bar machine package for enhanced versatility. The machine includes a 980-liter coolant system and a hinge type conveyor for efficient operation. If you are looking to get high-quality turning and milling capabilities, consider the DMG MORI CTX Beta 800 4a machine we have for sale. Located in Germany, contact us for more information about this machine.

Caractéristiques techniques

Description

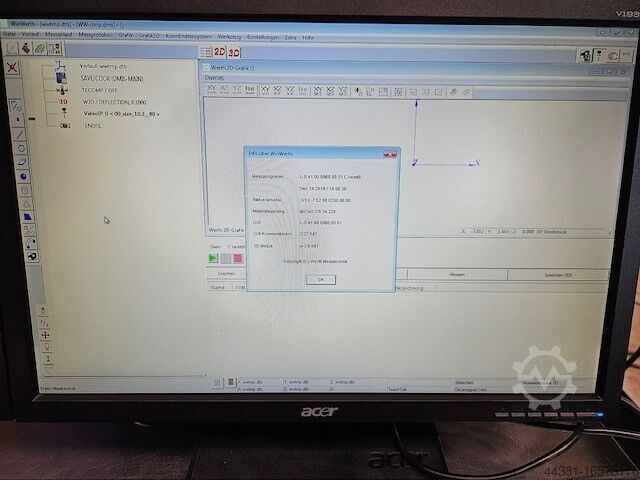

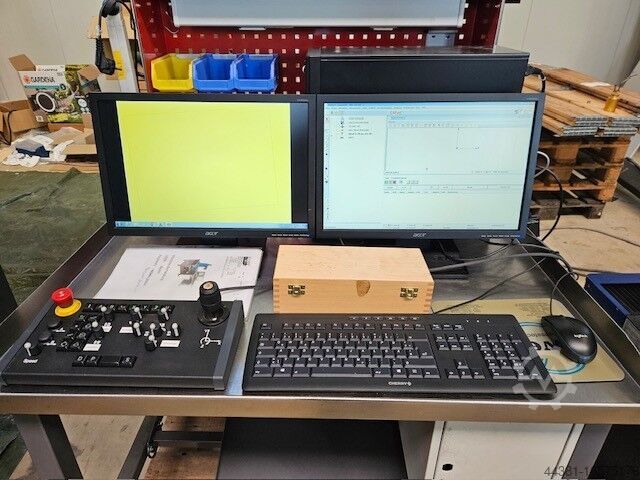

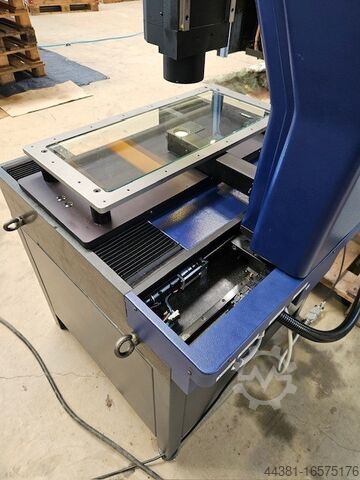

Condition: used, Werth Type: Werth SCOPE-CHECK 400 3D coordinate measuring machine Technical data: Measuring capacity (X x Y x Z): 400 x 200 x 200 [mm] Work table with integrated electrical cabinet: 1600 x 950 x 780 [mm] Max. weight on table: 20 [kg] Operating conditions: * Relative humidity: 40 - 70 [%] * Temperature: 10 - 40 [°C] Measuring precision (20°C, 8 kg, magnification 5X, resolution 0.5 microns) On table, E1 = 1.8 + L/120; E2 = 2.0 + L/150 All positions, E1 = 2.5 + L/120; E2 = 2.9 + L/100; E3 = 4.5 + L/75 Incremental scales Ball screw drive with servo motor Optical magnification (video): 0.5X to 5X Optical field (video): 13 x 10 [mm] to 1.3 x 1 [mm] Movement on linear guide with ball bearing Combinable lighting: diascopic, episcopic, ring-shaped LED/axial Voltage: 230 [V] Frequency: 50 [Hz] Power: 2 [kW] Weight: 300 [kg] Accessories CN Lighting control via software Video sensor IP for detection of measuring contour (screen display) Electronic control for table movement Manual control for table via joystick Predisposition for mechanical probe Calibration, 3D measurement, probe communication software Software: WinWerth v8.40 Scope of delivery: (Werth coordinate measuring machine with accessories as shown) Chsb Tqkezh Dq Ho Ntjb Condition: used (Changes and errors in the technical data are subject to change!) Please inquire about transport options before purchase. We will be happy to answer any further questions you may have by telephone.
