Centrifugal Fan Reitz MSE 025-016030-00

Reitz · MSE 025-016030-00

Caractéristiques techniques

Description

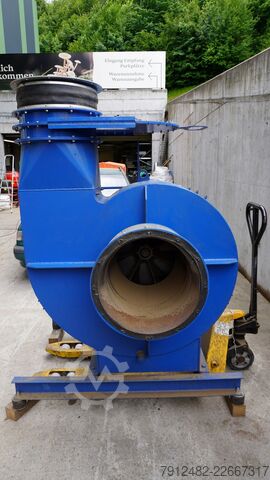

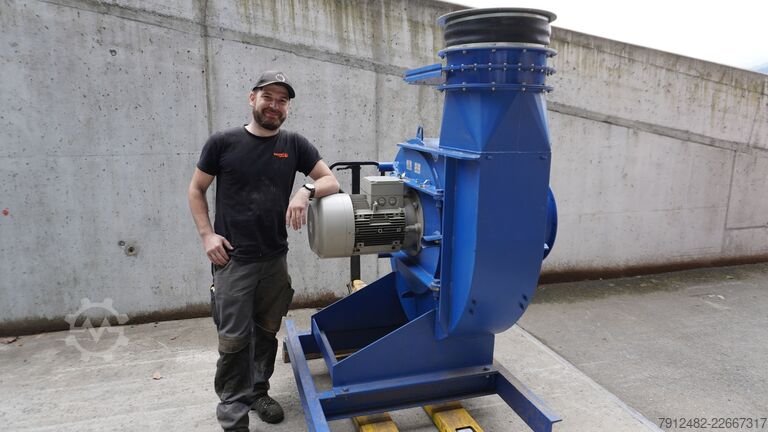

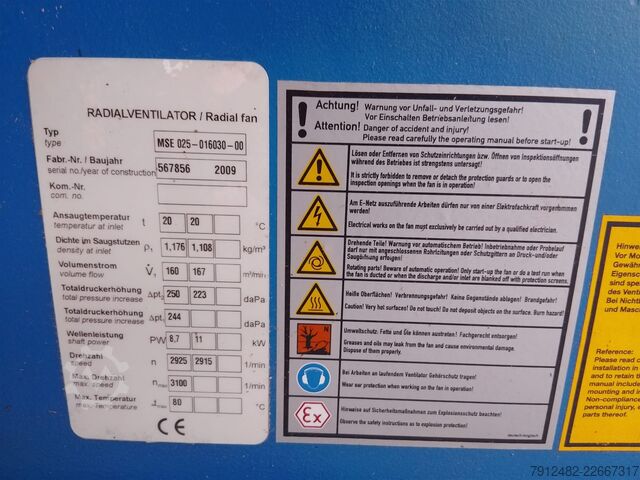

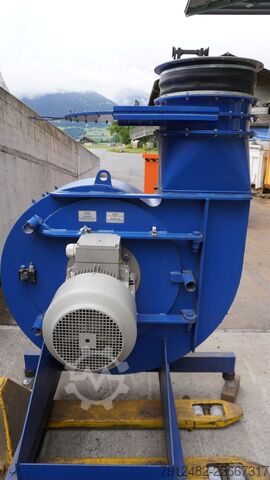

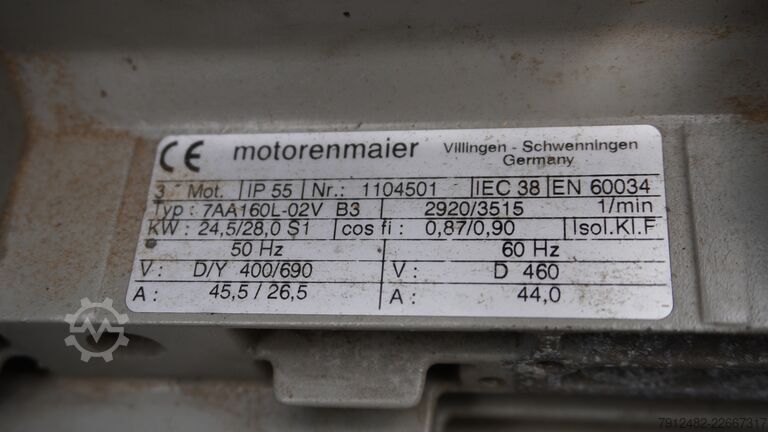

Condition: used, Convey grain, pellets, biomass, or other dry bulk materials pneumatically using a heavy-duty industrial fan, when lightweight extraction fans are insufficient. This Reitz Umwelttechnik fan was used for pneumatic material conveying in our own facility and is fully functional. It has a flow rate of approximately 9,600-10,000 m³/h, direct drive, and a 700 kg welded steel construction mounted on a mobile, liftable base frame. Nameplate photos and technical documentation are available; inspections are welcome. Only one unit is available – once sold, it’s gone. Pickup and transport slots are limited; loading this 700 kg unit must be scheduled. Crj Ap A Rszx Ebzs Hkjg Best for: pneumatic conveying of dry bulk material, high-volume industrial ventilation, and process air where lightweight extraction fans are inadequate. Not suitable for: wet or sticky materials, air above 80°C, or applications requiring formal ATEX certification unless independently verified. What the specifications mean in practice: • 160-167 m³/min (~9,600-10,000 m³/h) - provides sufficient airflow to convey material through piping, not just extract dust. • 223-250 daPa total pressure increase - maintains material flow over distance and through bends. • Direct-driven 24.5/28 kW motor - eliminates the need to tension, align, or replace belts. • 700 kg welded steel housing, backward-curved impeller - designed for continuous industrial operation. • Mobile, liftable base frame - can be moved into position using a forklift or crane. • Max. 80°C, up to 3100 rpm - suitable for ambient and moderately warm process air. What you get: the complete fan unit with backward-curved impeller, motorenmaier 24.5/28 kW three-phase motor (IP55, 400/690V), and welded base frame, ready for connection. Note: the safety plate refers to explosion-protection instructions. If formal ATEX certification is relevant to your application, it should be independently verified. Technical data (from nameplate): Manufacturer: Reitz Umwelttechnik | Type: MSE 025-016030-00 | Serial/Year: 567856 / 2009 Volume flow: 160-167 m³/min (~9,600-10,000 m³/h) | Total pressure increase: 223-250 daPa | Shaft power: 8.7-11 kW Speed: 2915-2925 rpm (max. 3100) | Max. temperature: 80°C Drive motor: motorenmaier gmbh, Type 7AA160L-02V, 24.5/28kW, 2-pole, IP55, 400/690V | Weight: 700 kg Condition: Used, functional, previously used for pneumatic material conveying. Location: Stanserstrasse 50, 6064 Kerns (self-pickup, transport by arrangement). Buy with confidence: manufactured in 2009 (serial 567856) by a reputable German manufacturer, used in our own facility, fully functional, and can be tested before pickup. Nameplate photos and technical documentation are available; in-person inspections are possible in Kerns OW by appointment. You can verify the identity, condition, and operation before making a purchase. Why buy now: this is a single, used machine, not stock – once sold, this specific configuration is no longer available; a 700 kg fan on a base frame is not an item we typically restock. First-buyer bonus: free loading with our forklift at no extra cost. Valid until September 9, 2026, or until sold. Action: please provide your intended application, required capacity, and destination – we will confirm suitability and provide a transport estimate.
