Briquetting press WEIMA C 150

Weima · C 150

Caractéristiques techniques

Description

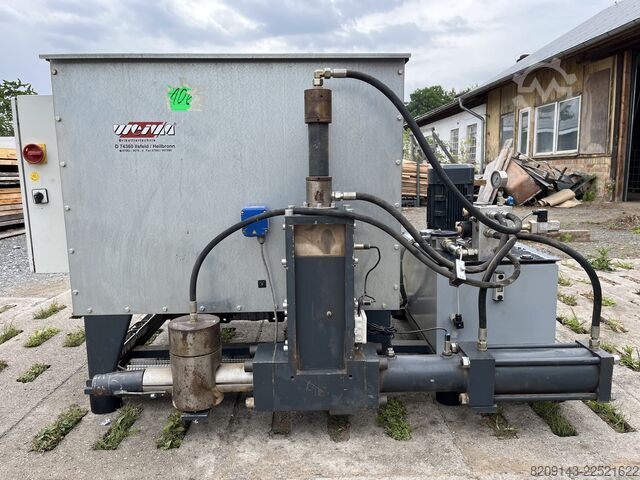

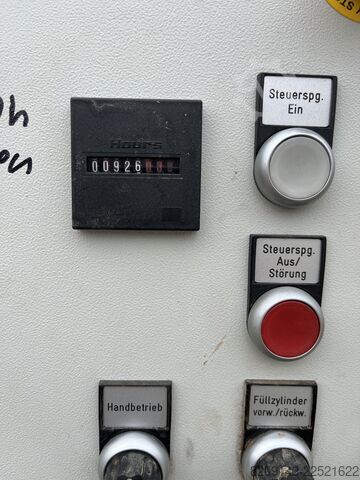

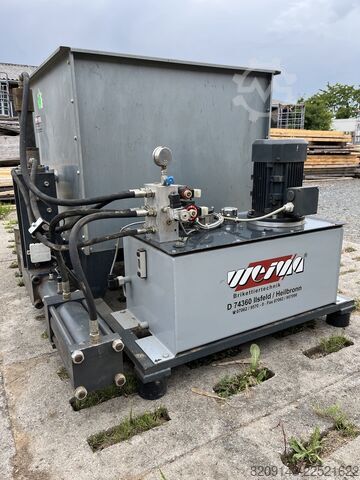

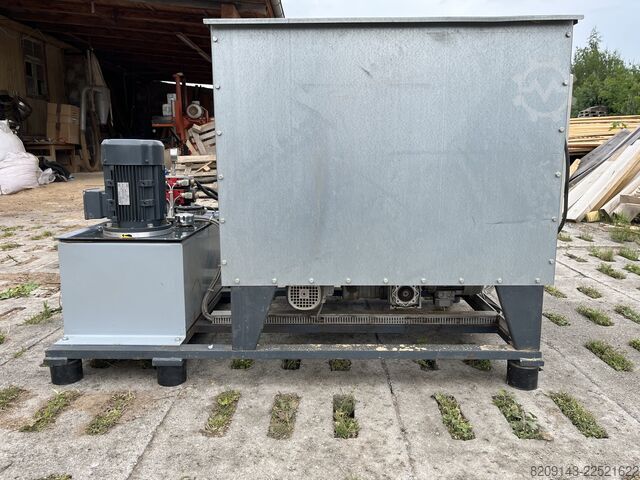

Condition: new, Year of construction: 2026, Your advantages Stable pressing mechanism with a wear-resistant, chrome-plated die Press chamber wear bushing Pre-compressor with end-position damping cylinder and screwed-on cover Control panel with PLC control Screw channel with discharge screw Separate oil tank with pump motor and valve control Safety switch for oil temperature Mounting on a stable base frame with rubber feet Briquette length monitoring Robust design, low-maintenance technology, small footprint: The machines in the C-series are particularly suitable for small and medium-sized businesses whose required throughput of 50-80 kg/h or 200 to 400 kg/day is not exceeded. Virtually any suitable material can be briquetted, such as wood, styrofoam, foam, paper, or biomass. All machines are available in left-hand or right-hand versions. Mounting on a stable base frame ensures quick installation and enables mobile use. Briquette diameter (mm) 50 Throughput up to (kg/h) 50 (material-dependent) Hydraulic motor (kW) 5.5 Screw motor (kW) 0.55 Oil volume (liters) 100 Weight (kg approx.) 800 Outstanding features at a glance Cs Nrocnz U Eeyzihohb Hydraulics with separate oil tank: Temperature-monitored hydraulic unit, complete valve control, pump motor for long operating times Briquette length monitoring: Regulates the length of the briquette to a uniform size Press chamber wear bushing: Prevents wear in the press area Location: Ex works - free loading
