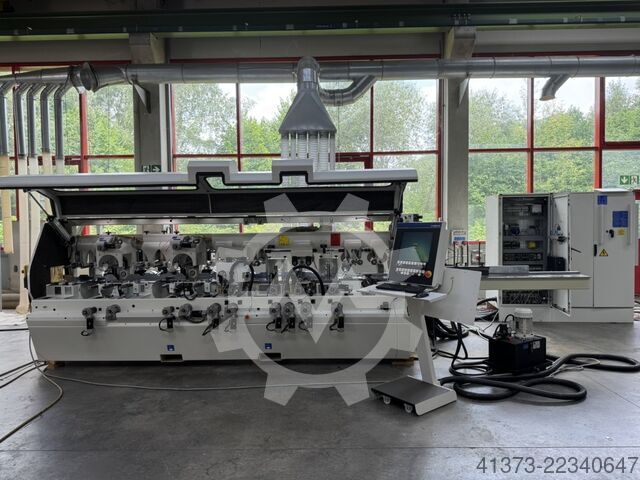

4 side moulder KUPER SWT XL-6

KUPER · SWT XL-6

Caractéristiques techniques

Description

Condition: used, Year of construction: 2006, total width: 2,000 mm, total height: 1,800 mm, Colour: Grey Empty weight: 4.000 kg Dimensions (LxBxH): 490 x 200 x 180 cm Four-sided planer Little Kuper SWT 23 XL-6 Year of construction 2006 min/max Working height 8/125 mm min/max Working width18/230 mm Working speed 6/28 m/min Spindle speed 6000 rpm Spindle diameter 40mm engines 1st. Spindle - under 5.5 kW 2nd Spindle - right 5,5kW 3rd Spindle - left 7.5kW 4th. Spindle - above 11kW 5th. Spindle - above 7.5kW 6th Spindle - under 7.5kW Main fuse 105 amp. Dimensions 7500 x 2000 x 1850 mm (L x W x H), weight 4000 kg - Year: 2006 - Documentation available: No - CE certificate present: No - Serial number: 2087 Chsupoxyvzuod S T Uob - Number of spindles [pcs.]: 6 - └ Spindle 1: - - Spindle type: Bottom - - Motor power [kW]: 5.6 - - Spindle diameter [mm]: 40 - - Max. planing block diameter [mm]: 160 - └ Spindle 2: - - Spindle type: Right - - Motor power [kW]: 7.6 - - Spindle diameter [mm]: 40 - - Max. planing block diameter [mm]: 170 - └ Spindle 3: - - Spindle type: Left - - Motor power [kW]: 9.7 - - Spindle diameter [mm]: 40 - - Max. planing block diameter [mm]: 170 - └ Spindle 4: - - Spindle type: Top - - Motor power [kW]: 15.2 - - Spindle diameter [mm]: 40 - - Max. planing block diameter [mm]: 160 - └ Spindle 5: - - Spindle type: Top - - Motor power [kW]: 9.7 - - Spindle diameter [mm]: 40 - - Max. planing block diameter [mm]: 160 - └ Spindle 6: - - Spindle type: Bottom - - Motor power [kW]: 9.7 - - Spindle diameter [mm]: 40 - - Max. planing block diameter [mm]: 170 - Max. planing width [mm]: 230 - Max. planing height [mm]: 160 - Feed table length [mm]: 2250 - Feed roller diameter [mm]: 140 - Feed motor [kW]: 5.6 - Conveyor drive: Cardan drive - Lubrication system: Manual - Diameter extraction nozzle [mm]: 120 - Options: Powered rollers in table - Feed speed: Manual - └ Min. feed speed [m/min]: 3 - └ Max. feed speed [m/min]: 20 - └ Feed speed control: Variable - Voltage [V]: 400 - Current consumption [A]: 105 - Fuse [A]: 125 - Power [kW]: 72.0 - Transport dimensions: 4900mm x 2000mm x 1800mm (l x w x h) - Transport weight [kg]: 4000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels
